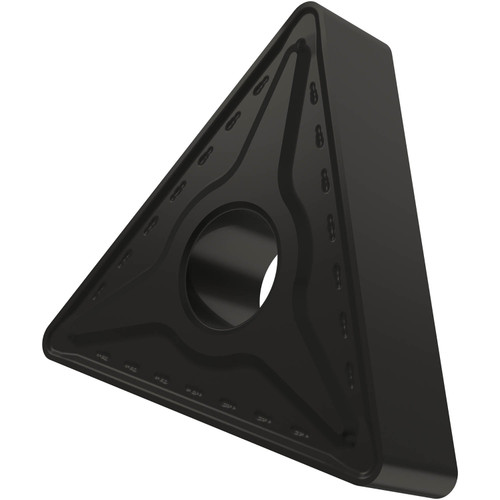

Pramet TNMG 544-RM:T9335 | 0.625" Circle Diameter x 0.25" Thickness Turning Insert

$17.37
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
1-5/64"
Length (Decimal Inch):
1.0830"
Length (mm):
27.5mm
Inscribed Circle (Inch):
5/8"
Inscribed Circle (Decimal Inch):
0.6250"
Inscribed Circle (mm):
15.875mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0630"
Corner Radius (mm):
1.6mm
interval quantity:
10
SKU:
23149558
Weight:
0.88 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping
Double-sided negative turning insert, triangular with inscribed circle diameter of 15.875 mm, 6.35 mm thick, 1.6 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM with rounded cutting edges, in grade T9335, a MT-CVD coated functionally graded WC-Co carbide within ISO range P20-P45, for medium to heavy machining of steels.

Product Specifications
EDP Number6754988
Max Depth of Cut (mm)8.9 mm
Max Depth of cut (Inch)0.35"
Coating Property1
Body Diameter (Inch)
Fixing Hole Diameter (mm)6.35 mm
Fixing Hole Diameter (Inch)0.25"
Cutting Edge Length (mm)27.5 mm
Cutting Edge Length (Inch)1.083"
Inscribed Circle Diameter (mm)15.875 mm
Inscribed Circle Diameter (Inch)0.625"
Insert Thickness (mm)6.35 mm
Insert Thickness (Inch)0.25"
Corner Radius (mm)1.6 mm
Corner Radius (Inch)0.063"
Coating ProcessMT-CVD
CoatingT9335
Surface ColorBlack
Min Depth of Cut (mm)2 mm
Min Depth of Cut (Inch)0.079"
Chipbreaker Manufacturer's DesignationRM
