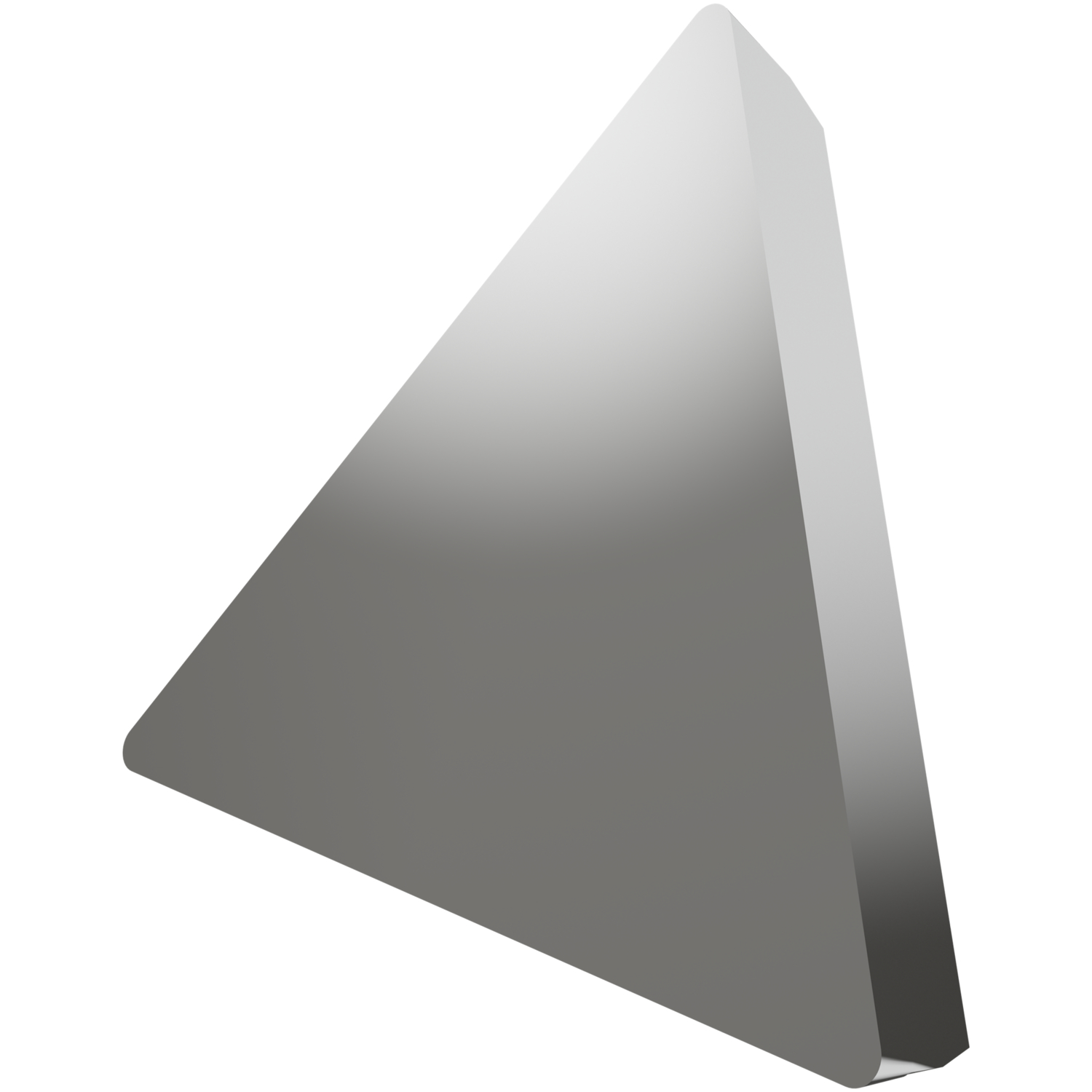

Single-sided milling insert TPUN 1603 with a plane rake surface, triangular for a maximum depth of cut of 12.0 mm, with 0.4 mm corner radius, an indexing accuracy according to ISO-tolerance class-U, S26 uncoated WC-(Ti, Ta, Nb)C-Co carbide.
Product Specifications
| EDP Number | 6751784 |
| Maximum Depth of Cut (mm) | 12 mm |
| Max Depth of Cut (Inch) | 0.472" |
| Cutting Edge Length (mm) | 16.5 mm |
| Cutting Edge Length (Inch) | 0.65" |
| Inscribed Circle Diameter (mm) | 9.525 mm |
| Inscribed Circle Diameter (Inch) | 0.375" |
| Insert Thickness (mm) | 3.18 mm |
| Insert Thickness (Inch) | 0.125" |
| Corner Radius (mm) | 0.4 mm |
| Corner Radius (Inch) | 0.016" |
| Coating | S26 |
| Surface Color | Silver |
| Min Depth of Cut (mm) | 0.5 mm |
| Min Depth of Cut (Inch) | 0.02" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
interval quantity:
10
