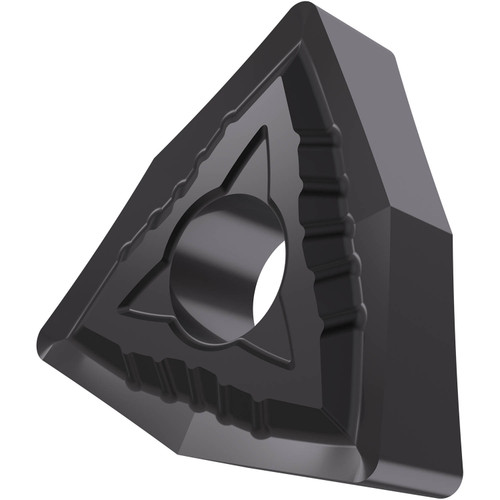

Double-sided negative turning insert, 80° trigon with inscribed circle diameter of 9.525 mm, 4.76 mm thick, 0.4 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker SF with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges M01-M15 and S01-S15, for fine to medium machining of stainless-steels and super-alloys.
Product Specifications
EDP Number | 6919819 |
Max Depth of Cut (mm) | 2.5 mm |
Max Depth of cut (Inch) | 0.098" |
Coating Property | 1 |
Maximum Axial Groove Outside Diameter (mm) | |
Fixing Hole Diameter (mm) | 3.81 mm |
Fixing Hole Diameter (Inch) | 0.15" |
Cutting Edge Length (mm) | 6.5 mm |
Cutting Edge Length (Inch) | 0.256" |
Inscribed Circle Diameter (mm) | 9.525 mm |
Inscribed Circle Diameter (Inch) | 0.375" |
Insert Thickness (mm) | 4.76 mm |
Insert Thickness (Inch) | 0.187" |
Corner Radius (mm) | 0.4 mm |
Corner Radius (Inch) | 0.016" |
Coating Process | PVD |
Coating | T6310 |
Surface Color | Purple - Black |
Min Depth of Cut (mm) | 0.4 mm |
Min Depth of Cut (Inch) | 0.016" |
Chipbreaker Manufacturer's Designation | SF |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
1/4"
Length (Decimal Inch):
0.2560"
Length (mm):
6.5mm
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.525mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.4mm
interval quantity:
10
