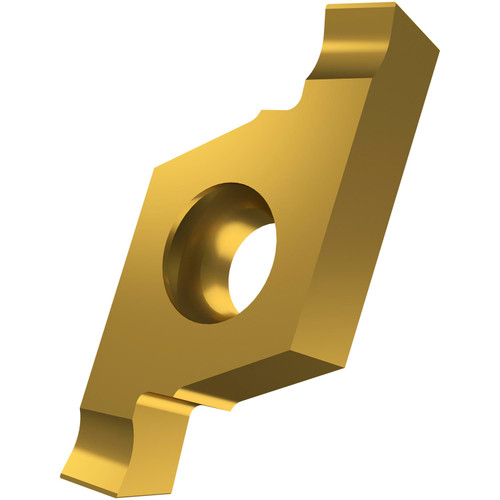

Pramet X61 0602-215 L:G8330 | 0.087" Cutting Width x 2.33 mm Thickness Grooving Insert

$20.71
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Pramet
Cutting Width (Inch):
3/32"
Cutting Width (Decimal Inch):
0.0870"
Cutting Width (mm):
2.2mm
Finish/Coating:
G8330
interval quantity:
10
SKU:
23150690
Weight:
0.10 LBS
Minimum Purchase:
10 units
Shipping:
Free Shipping
Double ended circlip grooving insert, with a 2.2 mm cutting width, a cutting width tolerance of ± 0.03 mm and rounded cutting edges with facet, grade G8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and M20-M35 for machining of steel and stainless-steel in combination with PRAMET P61.SFL, P61.GFL and GL6-S.. B parting and grooving tools.

Product Specifications
EDP Number7721630
Cutting Width (Inch)0.087"
Cutting Width (mm)2.2 mm
Cutting Width Lower Tolerance (mm)-0.03 mm
Cutting Width Upper Tolerance (mm)0.03 mm
Coating Property1
Maximum Axial Groove Outside Diameter (mm)
Insert Width (mm)6.35 mm
Insert Thickness (mm)2.33 mm
Coating ProcessPVD
CoatingG8330
Surface ColorGold
Cutting Width Lower Tolerance (Inch)-0.001"
Cutting Width Upper Tolerance (Inch)0.001"
Chipbreaker Manufacturer's DesignationWith chipbreaker -no designation
Country of originCzech Republic
