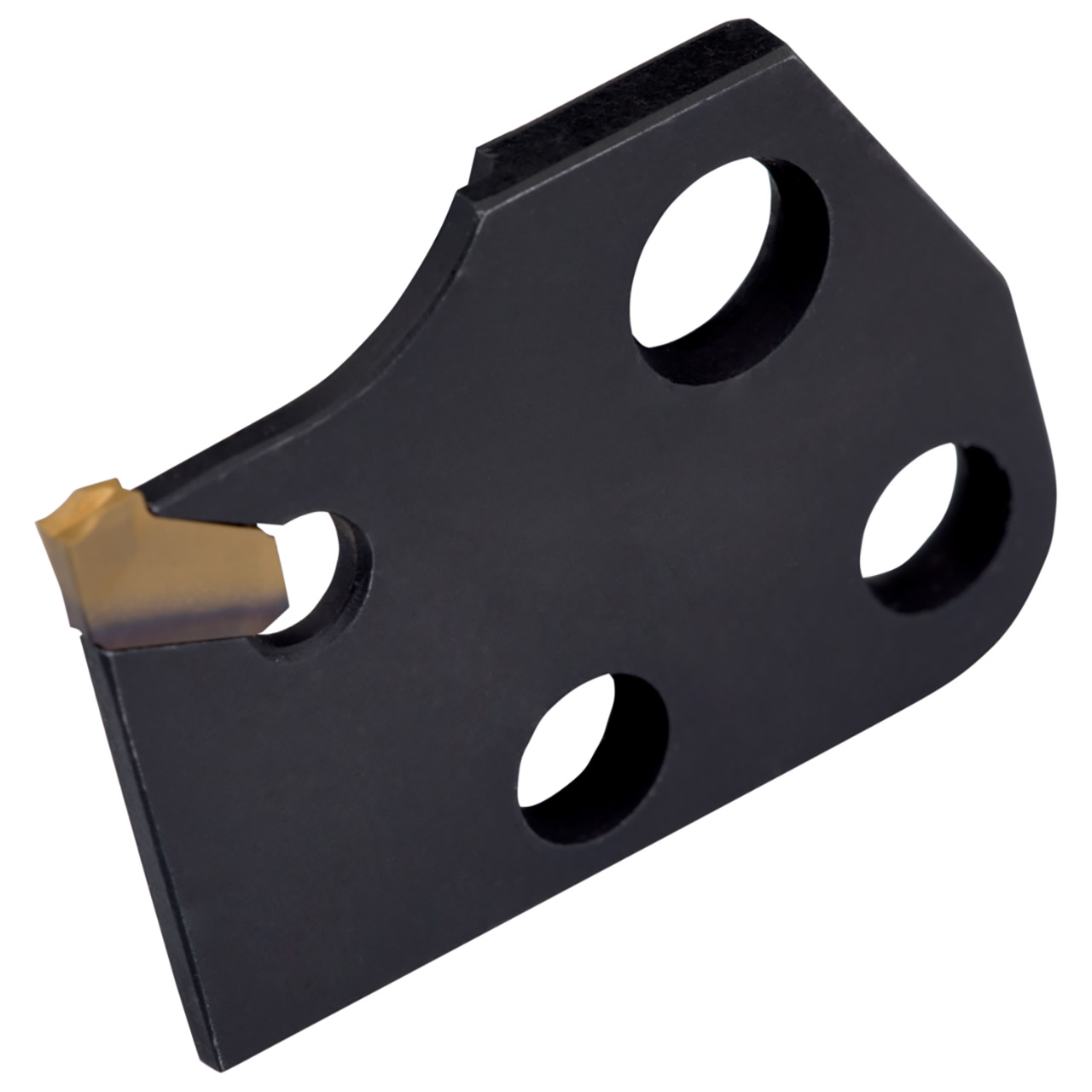

Spring clamp parting and grooving tool blade for holding a single ended insert with 5 mm cutting width (designation LFMX 5.1-. ), tool style assembly with MS-EN.. (KMP)(S), right or left hand side, insert parallel to the shank for a maximum grooving depth of 25 mm, for shallow and deep radial grooving, parting-off and tube parting-off.
Product Specifications
| EDP Number | 6756331 |
| Functional Height (mm) | 24 mm |
| Functional Height (Inch) | 0.945" |
| Cutting Width (Inch) | 0.201" |
| Cutting Width (mm) | 5.1 mm |
| Max Cutting Depth (mm) | 25 mm |
| Max Cutting Depth (Inch) | 0.984" |
| Shank Height (mm) | 29 mm |
| Shank Height (Inch) | 1.142" |
| Functional Length (mm) | 50 mm |
| Functional Length (Inch) | 1.969" |
| Clamping Type Code | System X |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
Overall Length (Inch):
6-19/64";Overall Length (Decimal Inch)=6.2990""
Overall Length (mm):
160mm
Shank Height (Inch):
1-17/64";Shank Height (Decimal Inch)=1.2600""
Shank Height (mm):
32mm
Shank Width/Diameter (Inch):
1-17/64";Shank Width/Diameter (Decimal Inch)=1.2600""
Shank Width/Diameter (mm):
25mm
