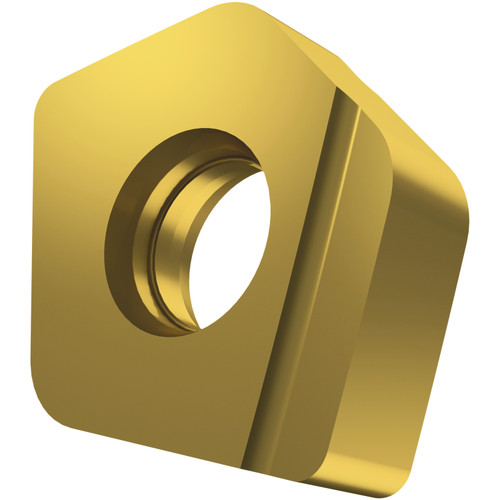

Double-sided milling insert XNGX 1308, special shape and wiper design for a maximum depth of cut of 3.5 mm, with an indexing accuracy according to ISO-tolerance class-G with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20-P40 and K20-K40 for machining of steel and cast-iron.
Product Specifications
| EDP Number | 7606905 |
| Maximum Depth of Cut (mm) | 3.5 mm |
| Max Depth of Cut (Inch) | 0.138" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 10 mm |
| Fixing Hole Diameter (Inch) | 0.394" |
| Inscribed Circle Diameter (mm) | 24.18 mm |
| Inscribed Circle Diameter (Inch) | 0.952" |
| Insert Thickness (mm) | 7.94 mm |
| Insert Thickness (Inch) | 0.313" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 0.5 mm |
| Min Depth of Cut (Inch) | 0.02" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
interval quantity:
5
