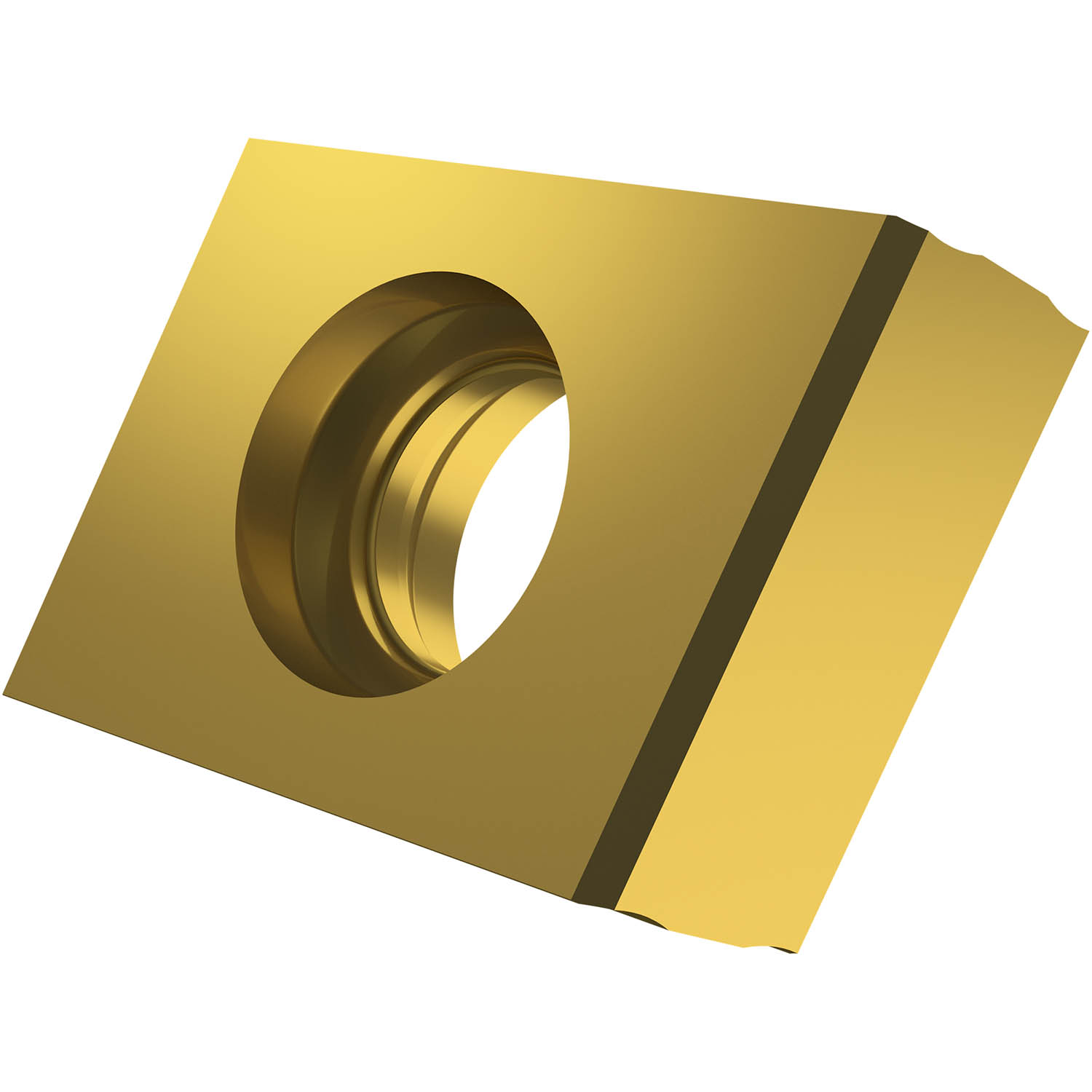

Double-sided disc milling insert, for a cutting width of 19.0 to maximum 24.3 mm with cutting edges with facet, M8340 PVD coated fine grained WC-Co carbide within ISO-grade range P25-P50 for machining of steel with disc mills S90CN(XN).
Product Specifications
| EDP Number | 6803612 |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 4.7 mm |
| Fixing Hole Diameter (Inch) | 0.185" |
| Cutting Edge Length (mm) | 12.7 mm |
| Cutting Edge Length (Inch) | 0.5" |
| Inscribed Circle Diameter (mm) | 10 mm |
| Inscribed Circle Diameter (Inch) | 0.394" |
| Insert Width (mm) | 5.4 mm |
| Insert Width (Inch) | 0.213" |
| Corner Chamfer Length (mm) | 0.5 mm |
| Coating Process | PVD |
| Coating | M8340 |
| Surface Color | Gold |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Pramet
interval quantity:
10
