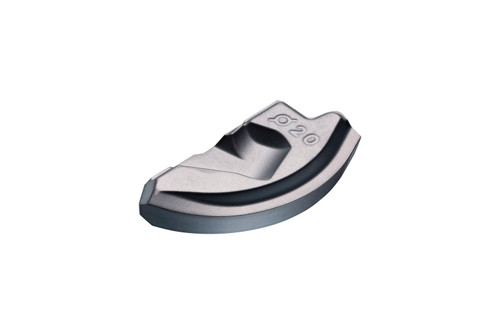

Ball nose segment copy milling insert for a diameter of 25 mm for a maximum depth of cut of 12.5 mm, FM geometry and M8310 PVD coated fine grained WC-Co carbide within ISO-grade ranges P01-P10 and K01-K10 for machining of steel and cast-iron with copy end mills K3-CXP.
Product Specifications
| EDP Number | 6756234 |
| Maximum Depth of Cut (mm) | 12.5 mm |
| Max Depth of Cut (Inch) | 0.492" |
| Coating Property | 1 |
| Insert Width (mm) | 25 mm |
| Insert Width (Inch) | 0.984" |
| Insert Thickness (mm) | 3.17 mm |
| Insert Thickness (Inch) | 0.125" |
| Coating Process | PVD |
| Coating | M8310 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
