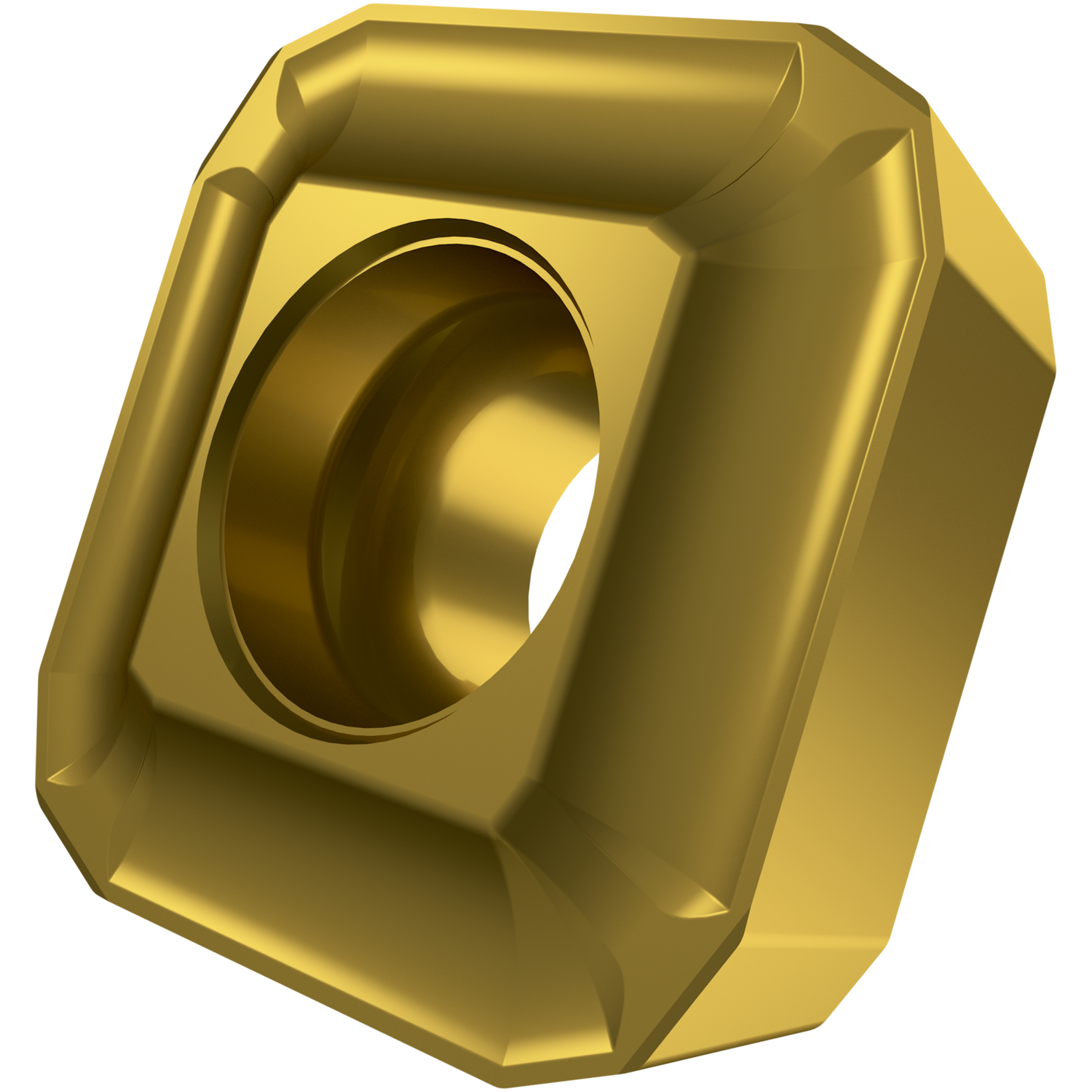

Drilling insert to fit the central pocket of PRAMET 80.D indexable drills within a diameter range from 15 up to 17mm, D8345 PVD coated fine grained WC-Co carbide within ISO-grade range P30-P50 for machining of steel.
Product Specifications
| EDP Number | 6754693 |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 2.4 mm |
| Fixing Hole Diameter (Inch) | 0.094" |
| Cutting Edge Length (mm) | 5.556 mm |
| Cutting Edge Length (Inch) | 0.219" |
| Inscribed Circle Diameter (mm) | 5.556 mm |
| Inscribed Circle Diameter (Inch) | 0.219" |
| Insert Thickness (mm) | 2.38 mm |
| Insert Thickness (Inch) | 0.094" |
| Coating Process | PVD |
| Coating | D8345 |
| Surface Color | Gold |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
interval quantity:
10
