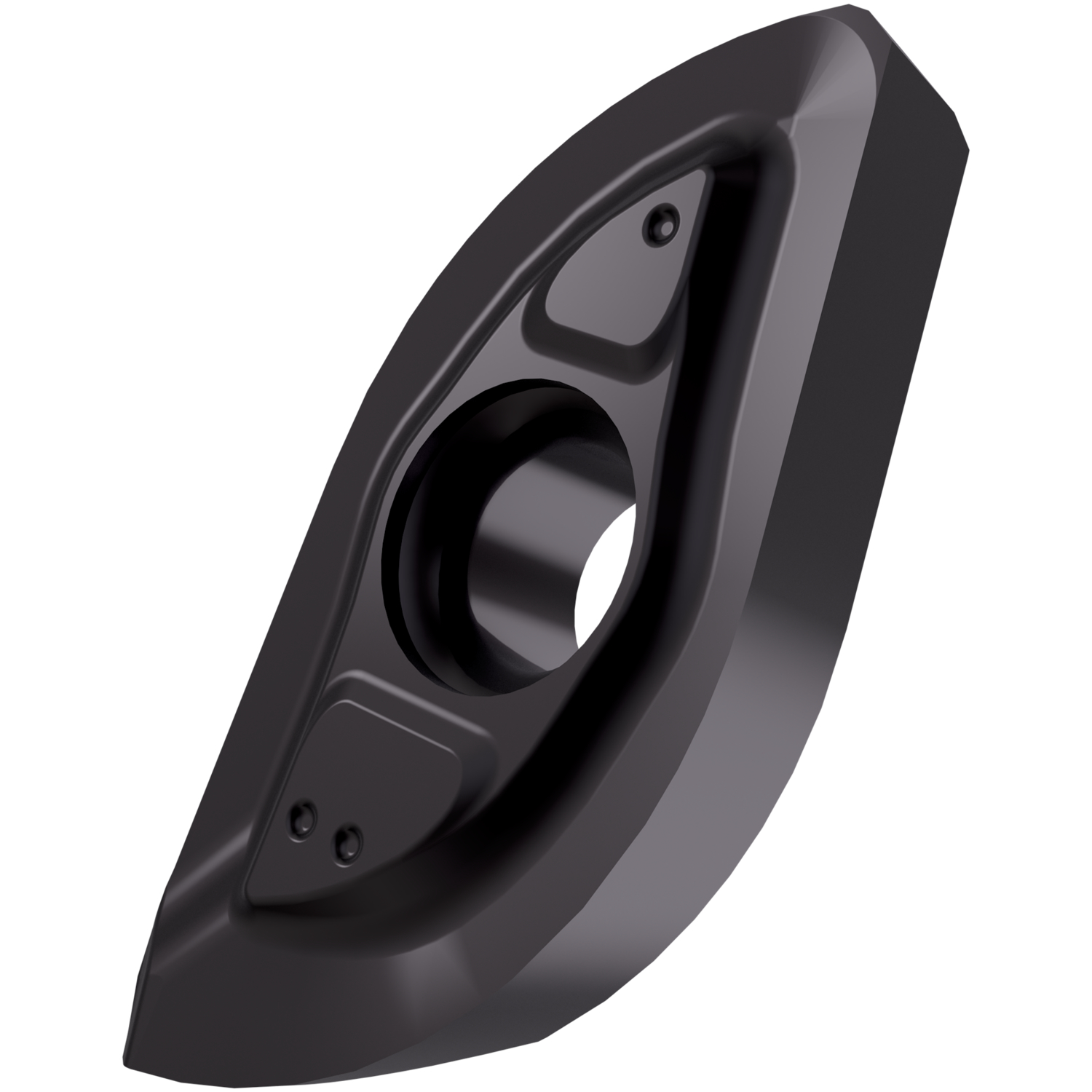

Indexable ball nose segment copy milling insert for a diameter of 25 mm for a maximum depth of cut of 22.3 mm, R geometry and M8345 PVD coated WC-Co carbide within ISO-grade ranges P30-P50 and M30-M40 for machining of steel and stainless-steel with copy end mills L2-SZP.
Product Specifications
| EDP Number | 6756130 |
| Maximum Depth of Cut (mm) | 22.3 mm |
| Max Depth of Cut (Inch) | 0.878" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 4.7 mm |
| Fixing Hole Diameter (Inch) | 0.185" |
| Insert Width (mm) | 25 mm |
| Insert Width (Inch) | 0.984" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Coating Process | PVD |
| Coating | M8345 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
