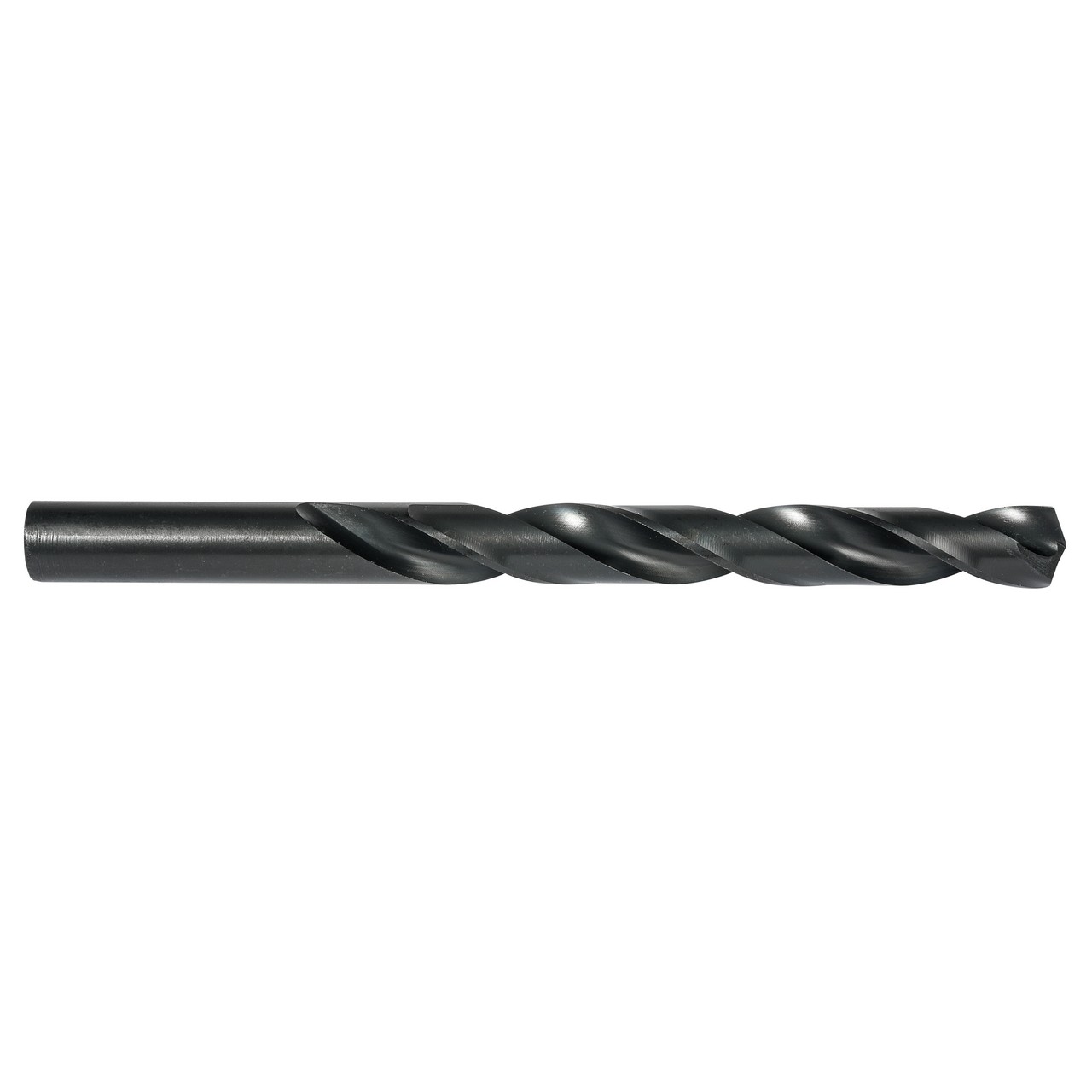

Part of the Precision range of drills for the maintenance and repair professional, 331HD heavy duty jobber drills come with a steam oxide finish, preventing workpiece material from sticking to the cutting surfaces of the tool, to produce clean and accurate holes. Suitable for use in many different applications, both hand held and machine, the tools are made from High Speed Steel, meaning they can be used for drilling a range of materials including steels, aluminum and stainless steel, and have a 135 degree split point to aid self-centering and reduce the push force needed. 331HD heavy duty jobber drills are available in fractional diameters from 1/16" to 1/2" inclusive.
Product Specifications
| EDP Number | 47233573 |
| Material Code | HSS |
| Basic Standard Group | ANSI |
| Point Angle | 135 |
| Cutting Diameter (mm) | 5.22 mm |
| Cutting Diameter (Inch) | 0.2055" |
| Length Chip Flute (Fractional Inch) | 2.1/2" |
| Hand Direction | Right |
| Drill Length | Jobber |
| Coating | Steam Tempered |
| Surface Color | Black |
| Surface Treatment | Steam Tempered |
| Cutting Diameter (Wire Gauge Size) | N5 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Precision Twist Drill
Drill Bit Size (Inch):
13/64"
Drill Bit Size (Decimal Inch):
0.2055"
Drill Bit Size (mm):
5.22mm
Drill Point Angle:
135°
Cutting Direction:
Right
Material:
HSS
Finish/Coating:
Steam Tempered
