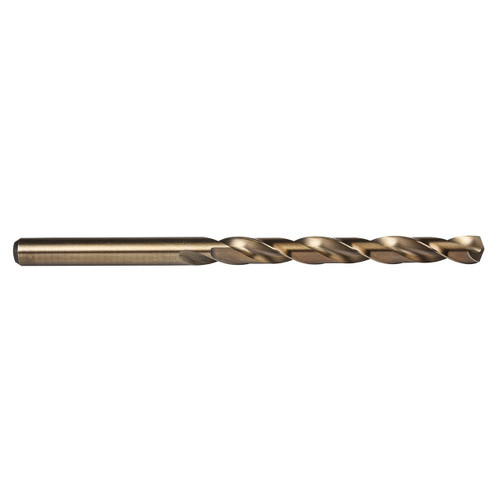

Precision Twist Drill 332HDN10 | 0.1935" Diameter x 135 Degree Point Angle x 3.625" OAL ST/Bronze Coated Jobber Length Drill Bit

$2.95 $2.74
(You save $0.21)
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Precision Twist Drill
Drill Bit Size (Inch):
3/16"
Drill Bit Size (Decimal Inch):
0.1935"
Drill Bit Size (mm):
4.91mm
Drill Point Angle:
135 Degree
Overall Length (Inch):
3-5/8"
Overall Length (Decimal Inch):
3.6250"
Overall Length (mm):
92.08mm
Cutting Direction:
Right
Material:
HSS
Finish/Coating:
ST/Bronze
interval quantity:
12
SKU:
10114053
UPC:
7320760716984
Weight:
0.39 LBS
Minimum Purchase:
12 units
Shipping:
Calculated at Checkout

Related Products

Part of the Precision range of drills, 332HD heavy duty jobber drills are available in a wide range of fractional sizes from 1/16" to 1/2", with a dual steam oxide finish for clean and accurate holes, by preventing workpiece material from sticking to the cutting surfaces of the drill. The 135 degree split point is a great help with self centering and also means you do not need to use as much force to drill into the workpiece. Manufactured from premium High Speed Steel, the tools can be used for drilling a number of different materials, including steels, stainless steel and aluminum, and are suitable for use in the many different machine and hand held applications of the maintenance and repair professional.

Product Specifications
EDP Number47233695
Material CodeHSS
Basic Standard GroupANSI
Point Angle135
Cutting Diameter (mm)4.91 mm
Cutting Diameter (Inch)0.1935"
Overall Length (mm)92.08 mm
Overall Length (Inch)3.625
Overall Length (Fractional Inch)3.5/8
Length Chip Flute (Fractional Inch)2.7/16"
Spiral FormStandard Spiral
Hand DirectionRight
Drill LengthJobber
CoatingST/Bronze
Surface ColorBlue & Bronze
Surface TreatmentSteam Tempered
Cutting Diameter (Wire Gauge Size)N10
