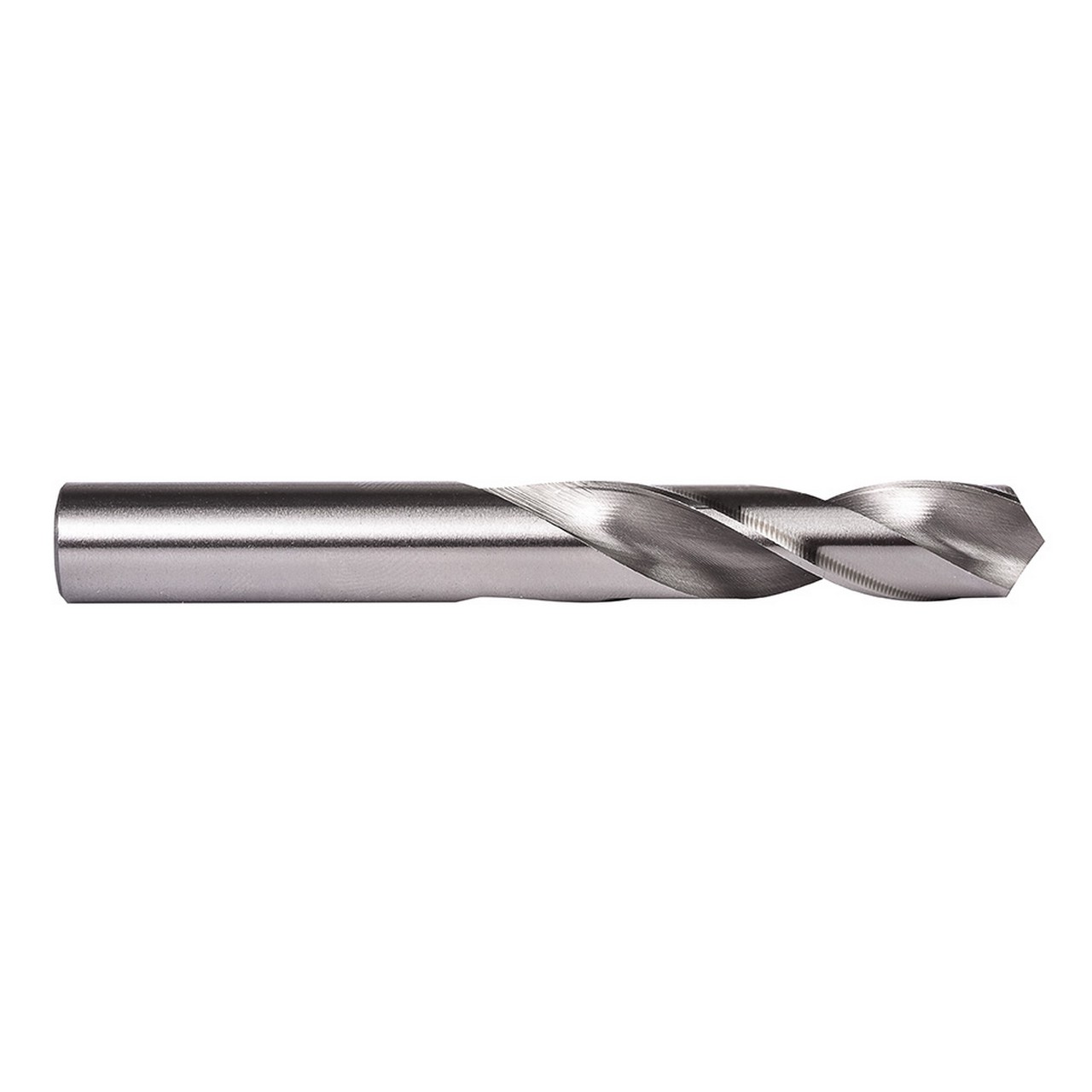

R42 screw machine length drills are manufactured from High Speed steel and are suitable for drilling a wide range of materials including aluminum, steel and stainless steel, and are available in letter sizes from A to Z. The drills have a strong 118 degree conventional point which can be easily re-ground, so they can be used many times,. The bright finish means you get accurate clean holes as workpiece material is prevented from sticking to the cutting surfaces of the drills, and they can be used in many different hand-held and machine applications.
Product Specifications
| EDP Number | 42011 |
| Material Code | HSS |
| Basic Standard Group | ANSI |
| Usable Length | 2.5 |
| Point Angle | 118 |
| Cutting Diameter (mm) | 7.14 mm |
| Cutting Diameter (Inch) | 0.281" |
| Cutting Diameter (Imperial Letter) | K |
| Overall Length (mm) | 68.26 mm |
| Overall Length (Inch) | 2.6875 |
| Overall Length (Fractional Inch) | 2.11/16 |
| Length Chip Flute (Fractional Inch) | 1.1/2" |
| Hand Direction | Right |
| Drill Length | Stub |
| Coating | Bright |
| Surface Color | Bright Silver |
| Surface Treatment | Original surface |
| Cutting Diameter (Wire Gauge Size) |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Precision Twist Drill
Drill Bit Size (Inch):
9/32"
Drill Bit Size (Decimal Inch):
0.2810"
Drill Bit Size (mm):
7.14mm
Drill Point Angle:
118°
Flute Length (Inch):
1-1/2"
Flute Length (Decimal Inch):
1.5"
Flute Length (mm):
38.1mm
Overall Length (Inch):
2-11/16"
Overall Length (Decimal Inch):
2.6875"
Overall Length (mm):
68.26mm
Material:
HSS
Finish/Coating:
Bright
Cutting Direction:
Right
