Features:
- REGO-FIX invented the ER collet
- Superior collet slot design
- Superior surface finish
- Improved clamping length on small diameters
Product Specifications
| Manufacturer Part Number | 1240.24000 |
| TIR (Decimal Inch) | 0.0002" |
| TIR (mm) | 0.005mm |
| Clamping Range (Decimal Inch) | 0.9449" - 0.9252" |
| Clamping Range (mm) | 24.0mm - 23.5mm |
| Length (Decimal Inch) | 1.6250" |
| Width (Decimal Inch) | 1.6250" |
| Height (Decimal Inch) | 2.0000" |
| Coolant Thru Capable | Yes |

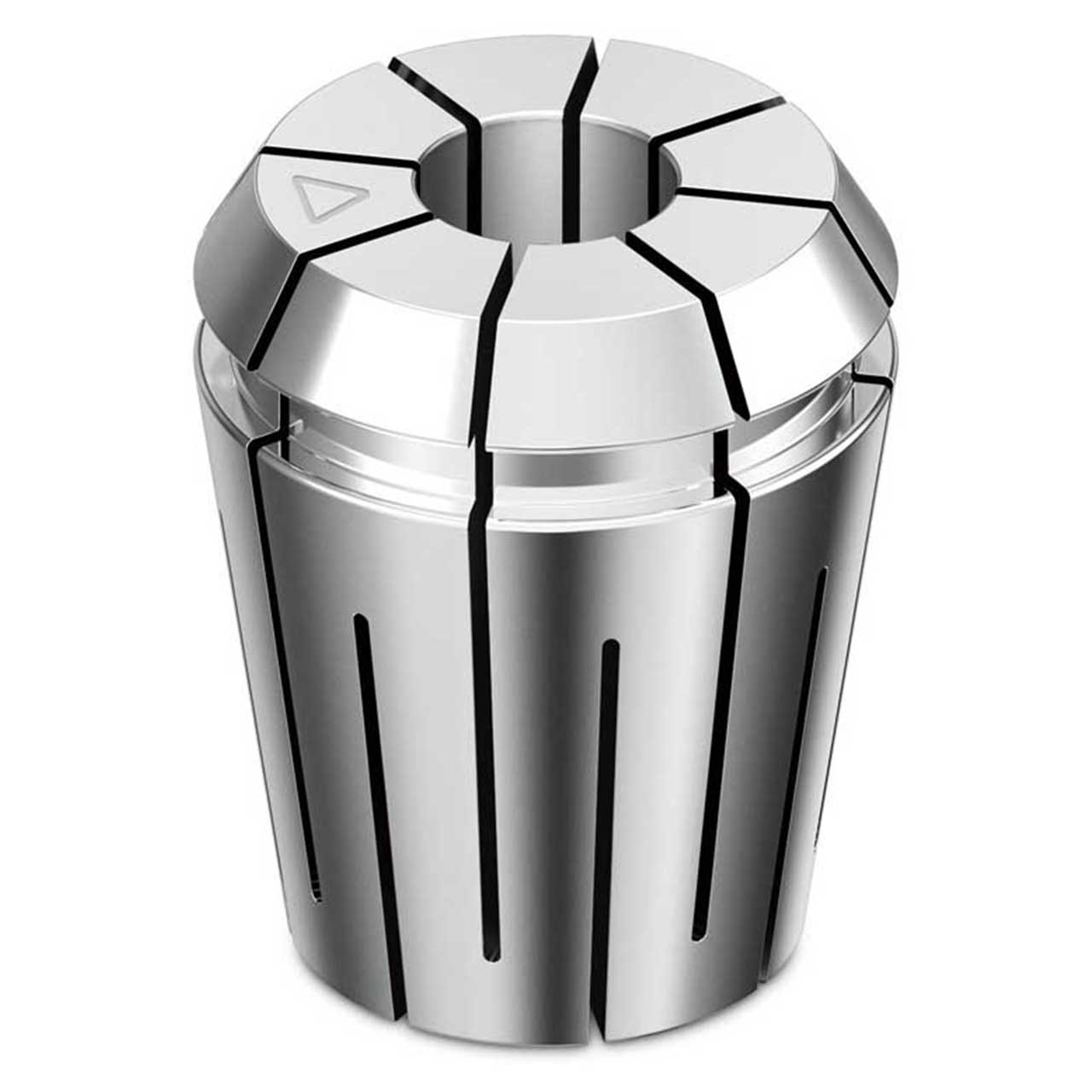

| Product Type | ER40 Sealed Collet |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Rego-Fix
Clamping Range (Inch):
17/18" - 37/40"""
Clamping Range (Decimal Inch):
0.9449" - 0.9252"""
Clamping Range (mm):
24.00mm - 23.50mm
TIR (Decimal Inch):
0.0002 "
Collet Series:
ER40
interval quantity:
1
