Features:
- Floating Tap Collet
- Superior collet slot design
- Superior surface finish
- Improved clamping length on small diameters
Product Specifications
| Manufacturer Part Number | 1525.04000 |
| TIR (Decimal Inch) | 0.0004" |
| TIR (mm) | 0.01mm |
| Clamping Range (Decimal Inch) | 0.1576" |
| Clamping Range (mm) | 4.00mm |
| Length (Decimal Inch) | 1.0000" |
| Width (Decimal Inch) | 1.0000" |
| Height (Decimal Inch) | 1.5000" |
| Coolant Thru Capable | No |

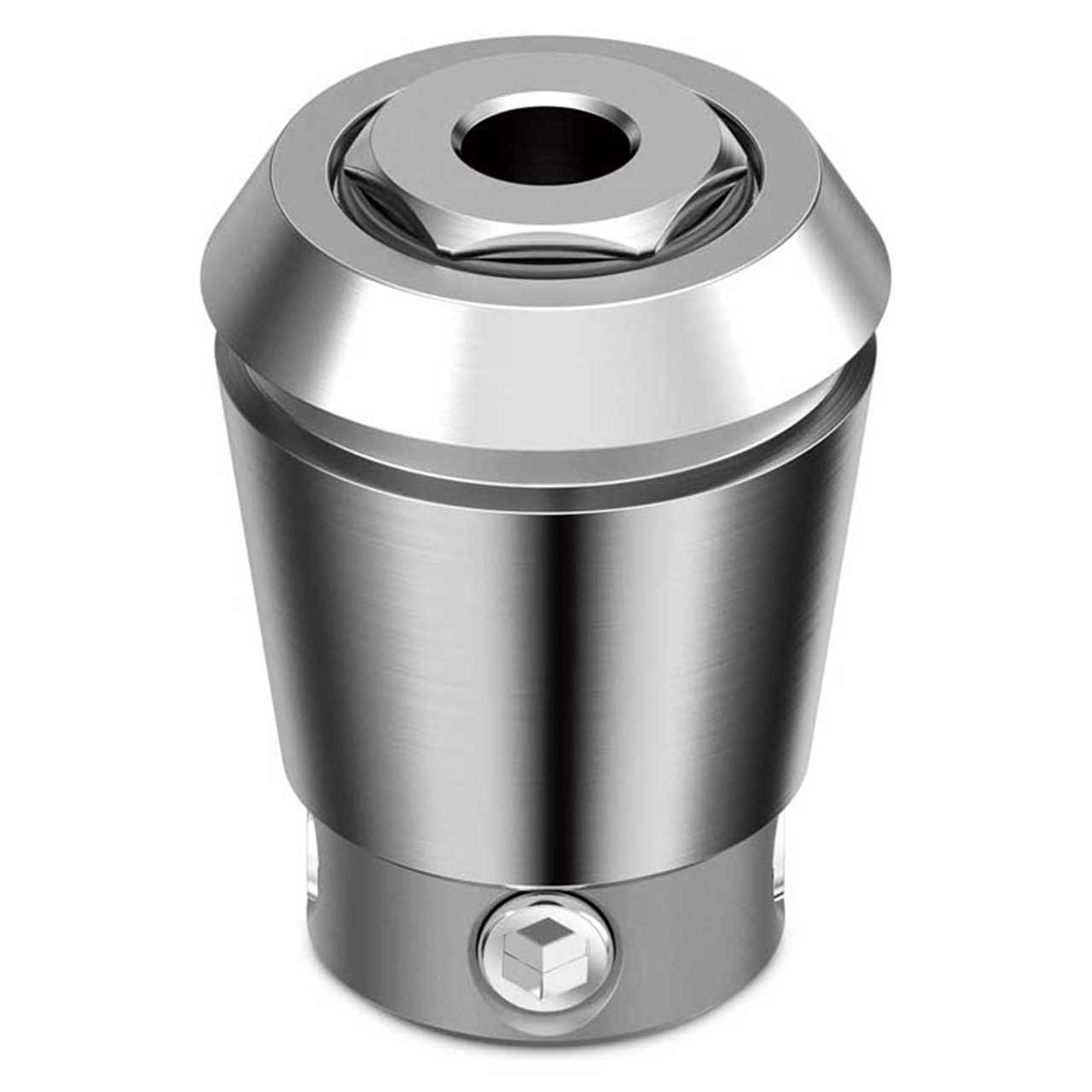

| Product Type | ER25 Tap Collet |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Rego-Fix
Clamping Range (Inch):
3/19"
Clamping Range (Decimal Inch):
0.1576"
Clamping Range (mm):
4.00mm
TIR (Decimal Inch):
0.0004"
Collet Series:
ER25
interval quantity:
1
