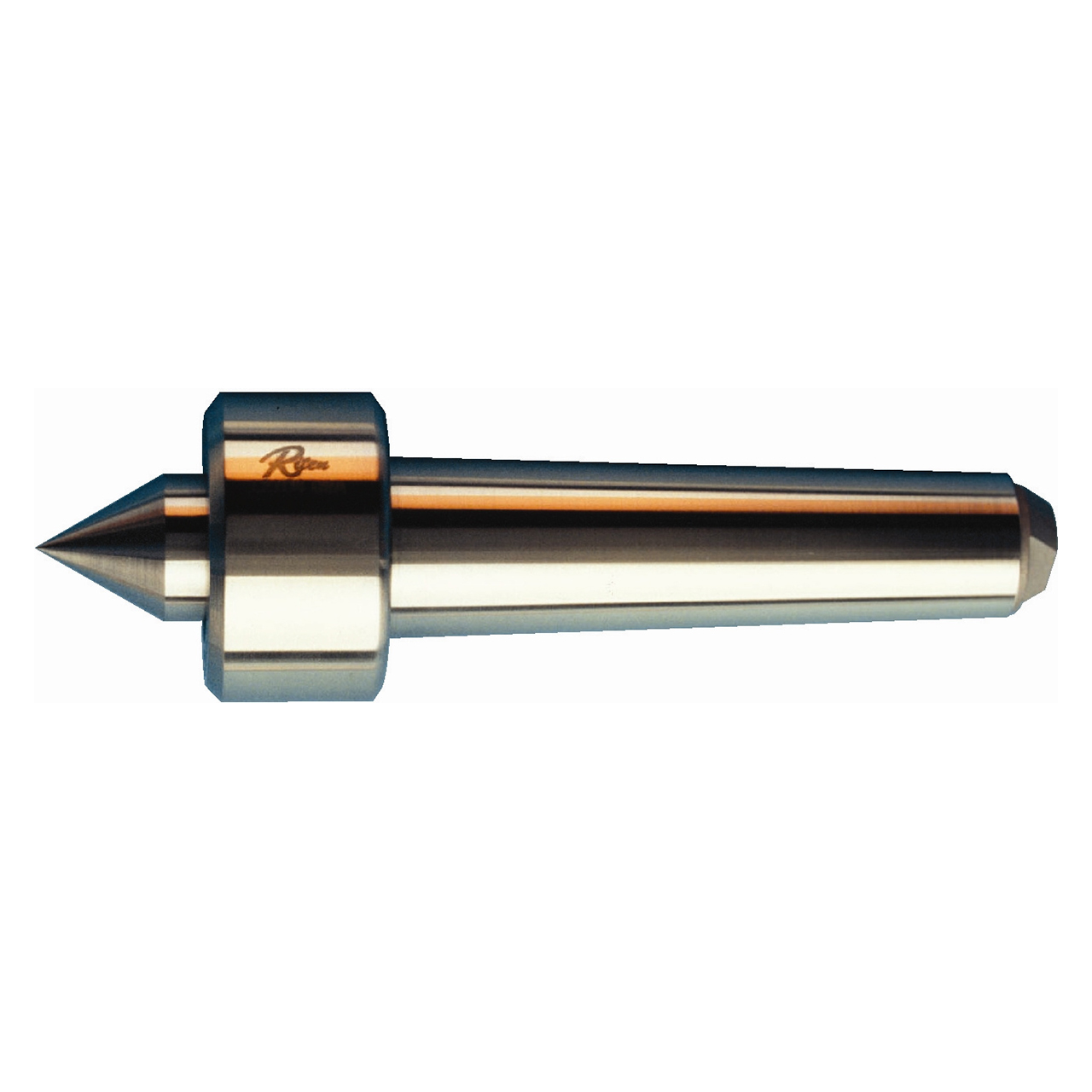

The ultimate live center for grinding is provided by Riten's unique design. Ideal for precision grinding applications; ± 0.00004.
<Product Specifications
| # MFG | 12102 |
| Taper | 2 Morse |
| Accuracy | ± 0.00004 |
| Point Length (Inch) | 0.813" |
| Max Workpiece Weight (lbs) | 400 lbs. |
| Head Length (Inch) | 0.750" |
| Head Diameter (Inch) | 1.250" |
| Max RPM | 1000 |
| Point Diameter (Inch) | 0.750" |
| Gage Line to Back of Head (Inch) | 0.094" |
| Point Style | Standard Point |
| Series | Super Accurate Live Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Length (Inch):
13/16"
Length (Decimal Inch):
0.8130"
Length (mm):
20.65mm
Diameter (Inch):
3/4"
Diameter (Decimal Inch):
0.7500"
Diameter (mm):
19.05mm
