Features:
- Accuracy to ± 0.0001
- Compensates for thermal expansion
- Low profile
Product Specifications
| # MFG | 17415 |

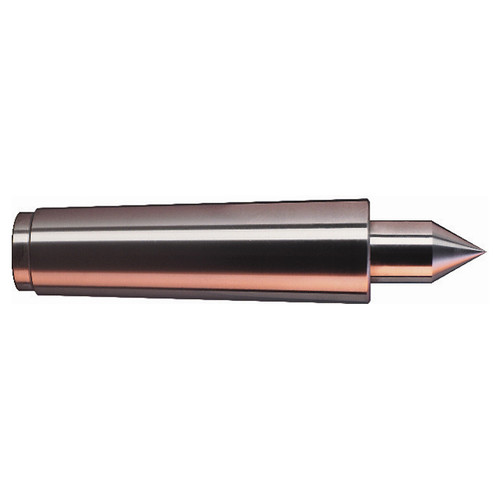

| Type | Type VI Standard Center |
| Taper | 15 Brown & Sharpe |
| Accuracy | ± 0.0001 |
| Overall Length (Inch) | 11.000" |
| Point Length (Inch) | 2.812" |
| Gage Line to Point (Inch) | 3.630" |
| Max Thrust Load (lbs) | 2183 lbs. |
| Max Spring Travel (Inch) | 0.188" |
| Max Workpiece Weight (lbs) | 2500 lbs. |
| Max RPM | 1500 |
| Point Diameter (Inch) | 1.509" |
| Series | Concentric Spring Loaded Live Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Riten
Length (Inch):
1"
Length (Decimal Inch):
2.8120"
Length (mm):
71.42mm
Overall Length (Inch):
11"
Overall Length (Decimal Inch):
11.0000"
Overall Length (mm):
279.40mm
Diameter (Inch):
1-33/64"
Diameter (Decimal Inch):
1.5090"
Diameter (mm):
38.33mm
