Features:
- Accuracy guaranteed to ± 0.00005
- Two angular contact bearings for superior performance in a compact design
- Points are through-hardened to 61-63 Rc
- Full-length spindle for extra rigidity
- Long point configuration allows for tool clearance
- Body heat-treated for additional strength

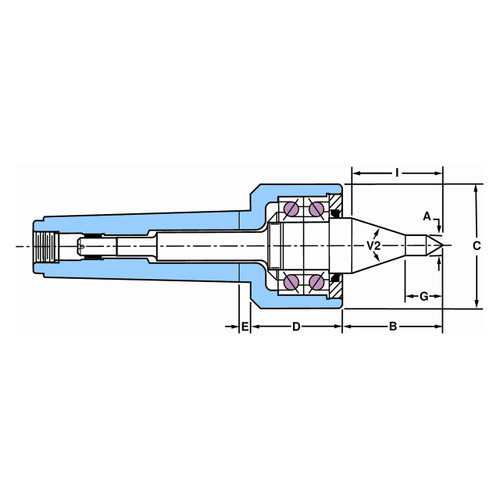

Product Specifications
| # MFG | 48102 |
| Taper | 2 Morse |
| Accuracy | ± 0.00005 |
| Point Length (Inch) | 1.875" |
| Max Workpiece Weight (lbs) | 310 lbs. |
| Head Length (Inch) | 1.750" |
| Head Diameter (Inch) | 2.375" |
| Max RPM | 4000 |
| Point Diameter (Inch) | 0.375" |
| Gage Line to Back of Head (Inch) | 0.250" |
| Point Style | Long Point |
| Series | Regal Live Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Length (Inch):
1"
Length (Decimal Inch):
1.8750"
Length (mm):
47.63mm
Diameter (Inch):
3/8"
Diameter (Decimal Inch):
0.3750"
Diameter (mm):
9.53mm
