Features:
- Accuracy guaranteed to ± 0.0001
- Designed for heavy steel rolls, paper rolls, printing rolls, castings, forgings and other large parts

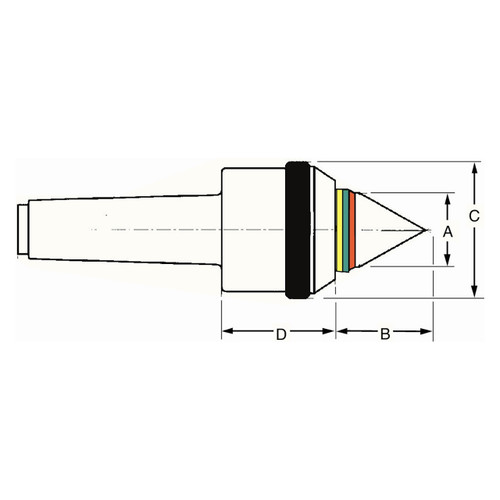

Product Specifications
| # MFG | 55164 |
| Taper | 4 Morse |
| Accuracy | ± 0.0001 |
| Point Length (Inch) | 1.750" |
| Max Workpiece Weight (lbs) | 4800 lbs. |
| Head Length (Inch) | 3.844" |
| Head Diameter (Inch) | 3.750" |
| Max RPM | 4000 |
| Point Diameter (Inch) | 1.656" |
| Gage Line to Back of Head (Inch) | 0.500" |
| Point Style | Standard Point |
| Series | Extra Heavy Duty Live Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Length (Inch):
1"
Length (Decimal Inch):
1.7500"
Length (mm):
44.45mm
Diameter (Inch):
1-21/32"
Diameter (Decimal Inch):
1.6560"
Diameter (mm):
42.06mm
