Features:
- Carbide Tipped Half Center
Product Specifications

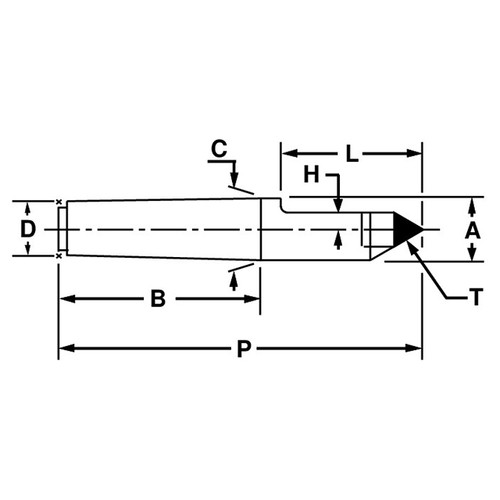

| # MFG | 74014 |
| Taper | 11 Brown & Sharpe |
| Accuracy | ± 0.00005 |
| Overall Length (Inch) | 10.125" |
| Point Diameter (Inch) | 1.531" |
| Center Style | Half Carbide Center |
| Taper Length (Inch) | 6.750" |
| D (Inch) | 1.250" |
| Carbide Tip Diameter (Inch) | 0.625" |
| Height Above Center Line (Inch) | 0.313" |
| Length of Cut Out (Inch) | 2.500" |
| Series | Standard Length Dead Centers |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Riten
Diameter (Inch):
1-17/32"
Diameter (Decimal Inch):
1.5310"
Diameter (mm):
38.89mm
interval quantity:
1
