RobbJack B-203-05-C | 0.156" Diameter x 0.188" Shank x 2.000" OAL 2 Flute TiCN Coated Ball End Mill

$38.07
Brand:
RobbJack
Mill Diameter (Inch):
5/32"
Mill Diameter (Decimal Inch):
0.1560"
Mill Diameter (mm):
3.96mm
Number of Flutes:
2
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1880"
Shank Diameter (mm):
4.78mm
Finish/Coating:
TiCN
Cutting Direction:
Right Hand
Helix Angle (Degree):
30 Degree
SKU:
25203202
Weight:
0.23 LBS
Shipping:
Calculated at Checkout
RobbJack B-203-05-C | 0.156" Diameter x 0.188" Shank x 2.000" OAL 2 Flute TiCN Coated Ball End Mill

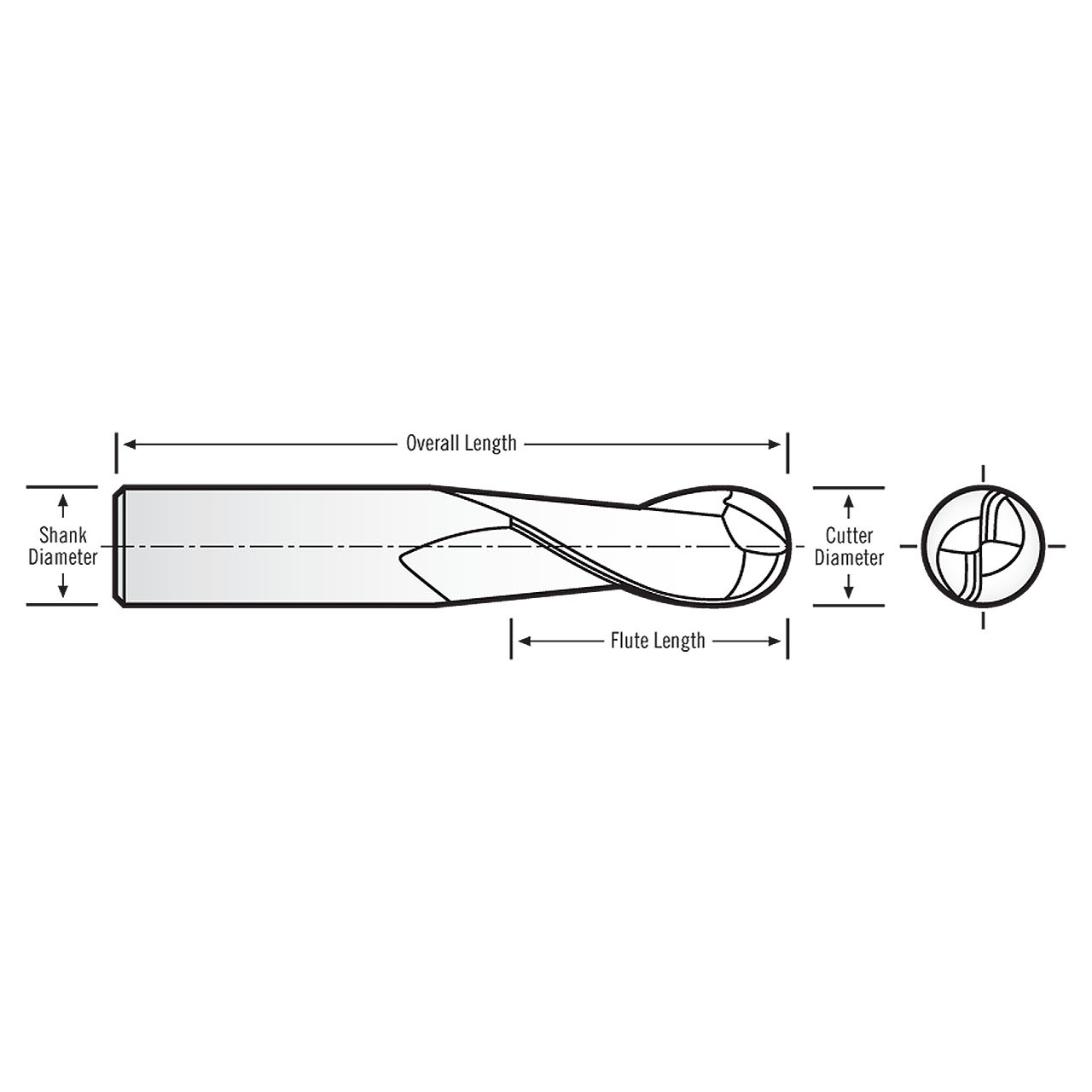

Product Specifications
Manufacturer Part NumberB-203-05-C
Cutting Diameter (Decimal Inch)0.156"
Shank Diameter (Decimal Inch)0.188"
Maximum Cutting of Diameter (Decimal Inch)0.156"
Overall Length (Decimal Inch)2.000"
Flute Length (Decimal Inch)0.563"
Number of Flutes2
Helix Angle (Degree)30 Degree
Cutting DirectionRight Hand
Helix DirectionRight Hand
SeriesB-203
CoatingTiCN
Product TypeBall End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
RobbJack
Mill Diameter (Inch):
5/32"
Mill Diameter (Decimal Inch):
0.1560"
Mill Diameter (mm):
3.96mm
Number of Flutes:
2
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1880"
Shank Diameter (mm):
4.78mm
Finish/Coating:
TiCN
Cutting Direction:
Right Hand
Helix Angle (Degree):
30 Degree
