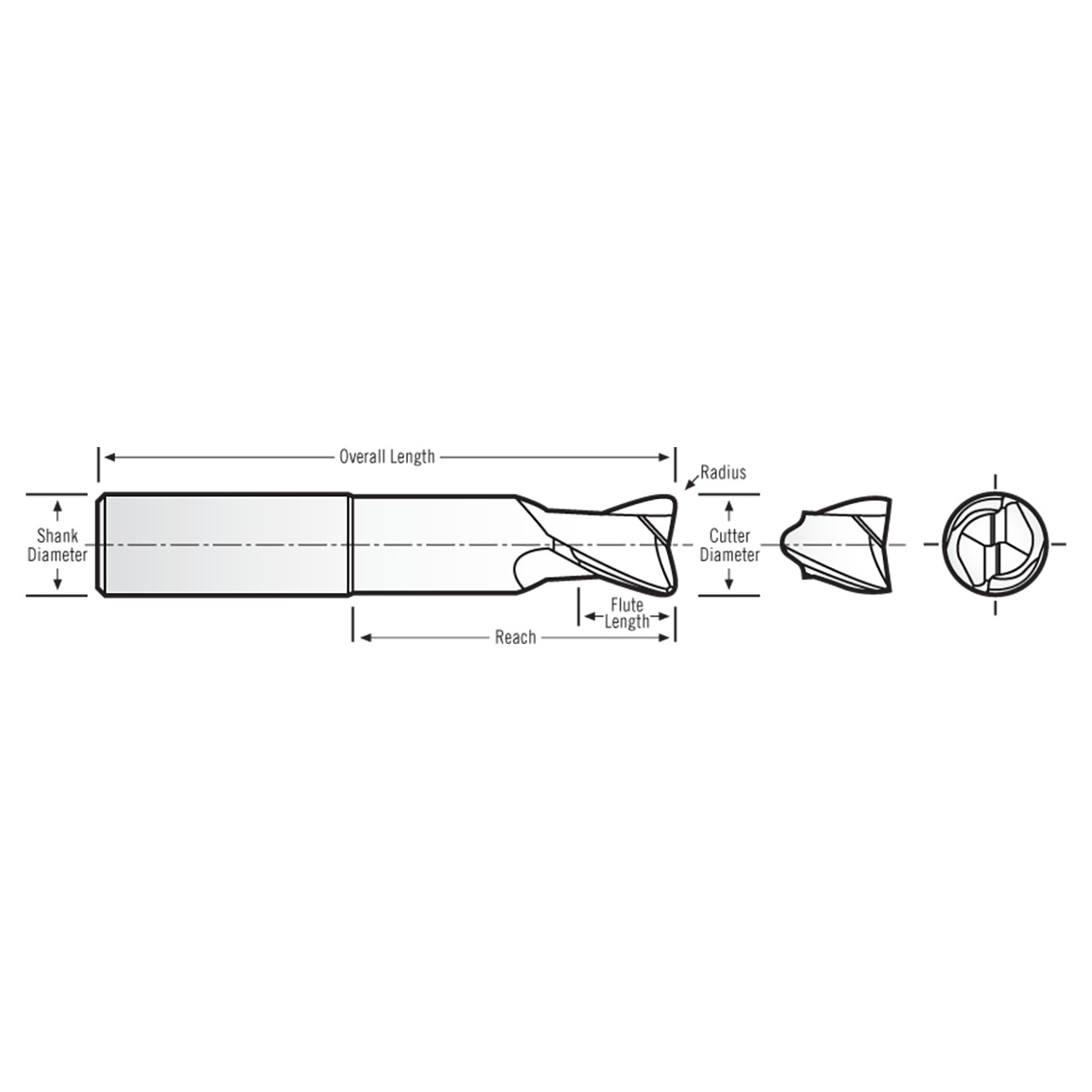

Product Specifications
| # Manufacturer Number | FM-202-32-060-DLC |
| Cutting Diameter (Inch) | 1" |
| Shank Diameter (Inch) | 1" |
| Maximum Cutting Diameter (Inch) | 0.9990" |
| Flute Length (Inch) | 1" |
| Overall Length (Inch) | 6" |
| Reach Length (Inch) | 3" |
| Neck Diameter (Inch) | 0.9500" |
| Corner Radius (Inch) | 0.0600" |
| Helix Angle (Degree) | 40 Degree |
| Helix Direction (Hand) | Right Hand |
| Cutting Direction (Hand) | Right Hand |
| Number of Flute | 2 |
| Coating | DLC Coated |
| Product Type | Square End Mill |
