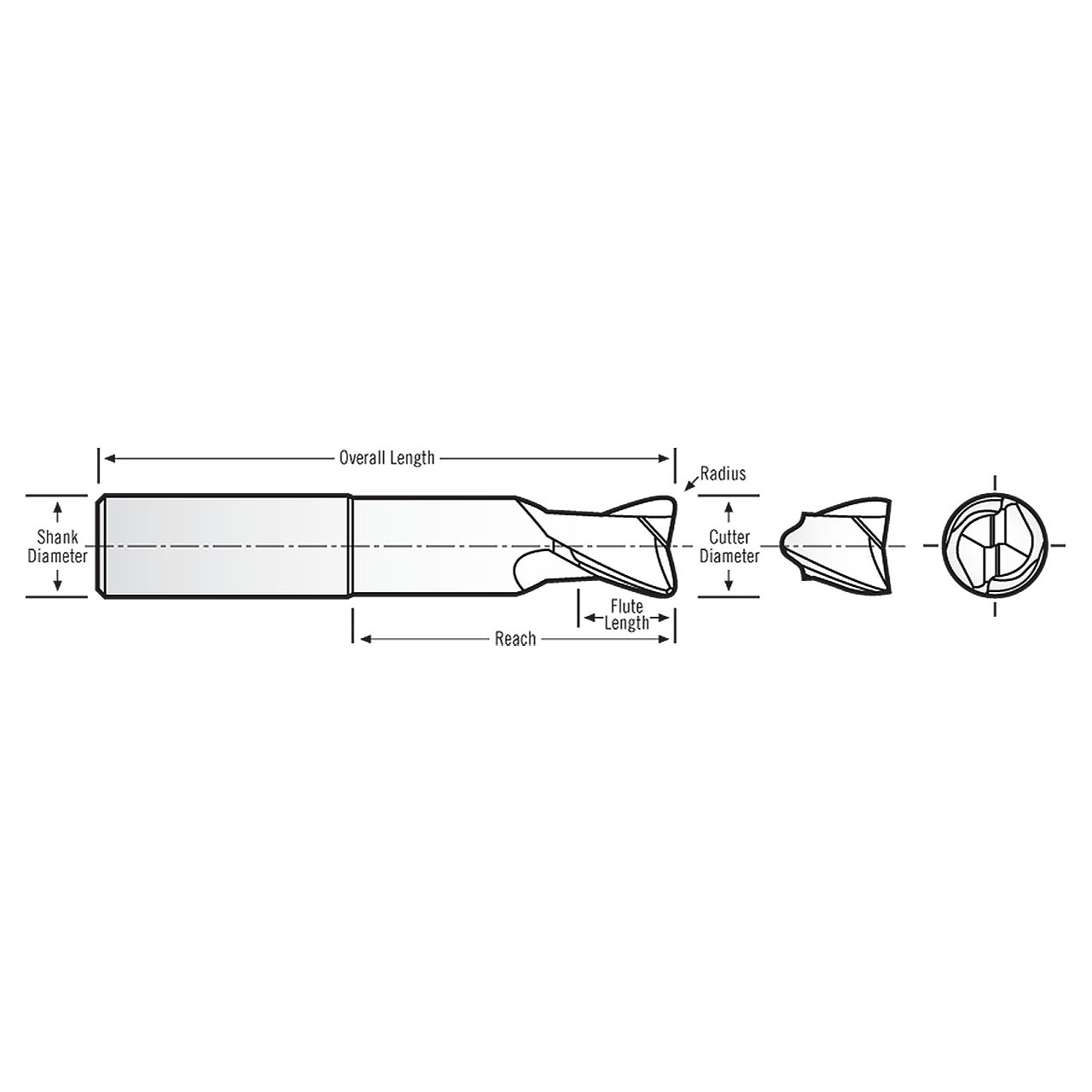

RobbJack FM-205-10-DLC | 0.3125" Cutting Diameter x 0.3125" Shank x 3.1250" OAL 2 Flute DLC Coated Square End Mill

$119.35 $116.96
(You save $2.39)
Brand:
RobbJack
Number of Flutes:
2
Overall Reach (Inch):
1-5/8"
Overall Reach (Decimal):
1.6250"
Overall Reach (mm):
41.28mm
Finish/Coating:
DLC
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Overall Length (Inch):
3-1/8"
Overall Length (Decimal Inch):
3.1250"
Overall Length (mm):
79.38mm
Helix Angle:
40 Degree
Cutting Direction:
Right Hand
Mill Diameter (Decimal Inch):
0.3125"
interval quantity:
1
SKU:
25203946
UPC:
Weight:
0.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
RobbJack FM-205-10-DLC | 0.3125" Cutting Diameter x 0.3125" Shank x 3.1250" OAL 2 Flute DLC Coated Square End Mill

Product Specifications
# Manufacturer NumberST-434-08
Cutting Diameter (Inch)0.2500"
Shank Diameter (Inch)0.2500"
Maximum Cutting Diameter (Inch)0.2510"
Flute Length (Inch)0.7500"
Overall Length (Inch)2.5000"
Corner Chamfer (Inch)0.0030"
Corner Chamfer (Degree)45 Degree
Helix Angle (Degree)30 Degree
Helix Direction (Hand)Right Hand
Cutting Direction (Hand)Right Hand
CoatingUncoated
Product TypeSquare End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
RobbJack
Number of Flutes:
2
Overall Reach (Inch):
1-5/8"
Overall Reach (Decimal):
1.6250"
Overall Reach (mm):
41.28mm
Finish/Coating:
DLC
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Overall Length (Inch):
3-1/8"
Overall Length (Decimal Inch):
3.1250"
Overall Length (mm):
79.38mm
Helix Angle:
40 Degree
Cutting Direction:
Right Hand
Mill Diameter (Decimal Inch):
0.3125"
interval quantity:
1
