Product Specifications
| Manufacturer Part Number | FM-305-10-090 |
| Cutting Diameter (Decimal Inch) | 0.313" |
| Shank Diameter (Decimal Inch) | 0.313" |
| Maximum Cut of Diamter (Decimal Inch) | 0.312" |
| Overall Length (Decimal Inch) | 3.125" |
| Flute Length (Decimal Inch) | 0.313" |
| Reach Length (Decimal Inch) | 1.625" |
| Neck Diameter (Decimal Inch) | 0.297" |
| Corner Radius (Decimal Inch) | 0.090" |
| Number of Flutes | 3 |
| Helix Angle (Degree) | 40 Degree |
| Cutting Direction | Right Hand |
| Helix Direction | Right Hand |
| Series | FM-305 |
| Coating | Uncoated |

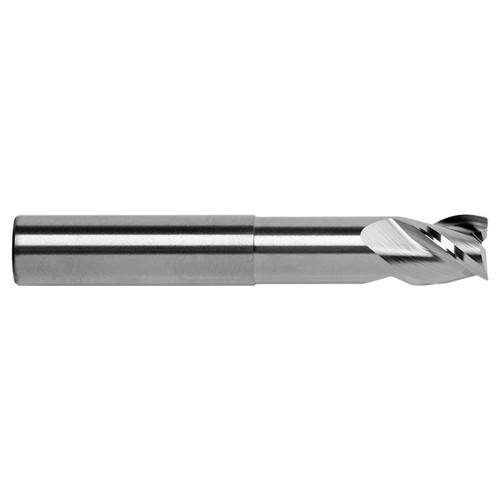

| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Mill Diameter (Inch):
5/16"
Mill Diameter (Decimal Inch):
0.3130"
Mill Diameter (mm):
7.95mm
Number of Flutes:
3
Finish/Coating:
Uncoated
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3130"
Shank Diameter (mm):
7.95mm
Overall Length (Inch):
3-1/8"
Overall Length (Decimal Inch):
3.1250"
Overall Length (mm):
79.38mm
Helix Angle:
40 Degree
Cutting Direction:
Right Hand
