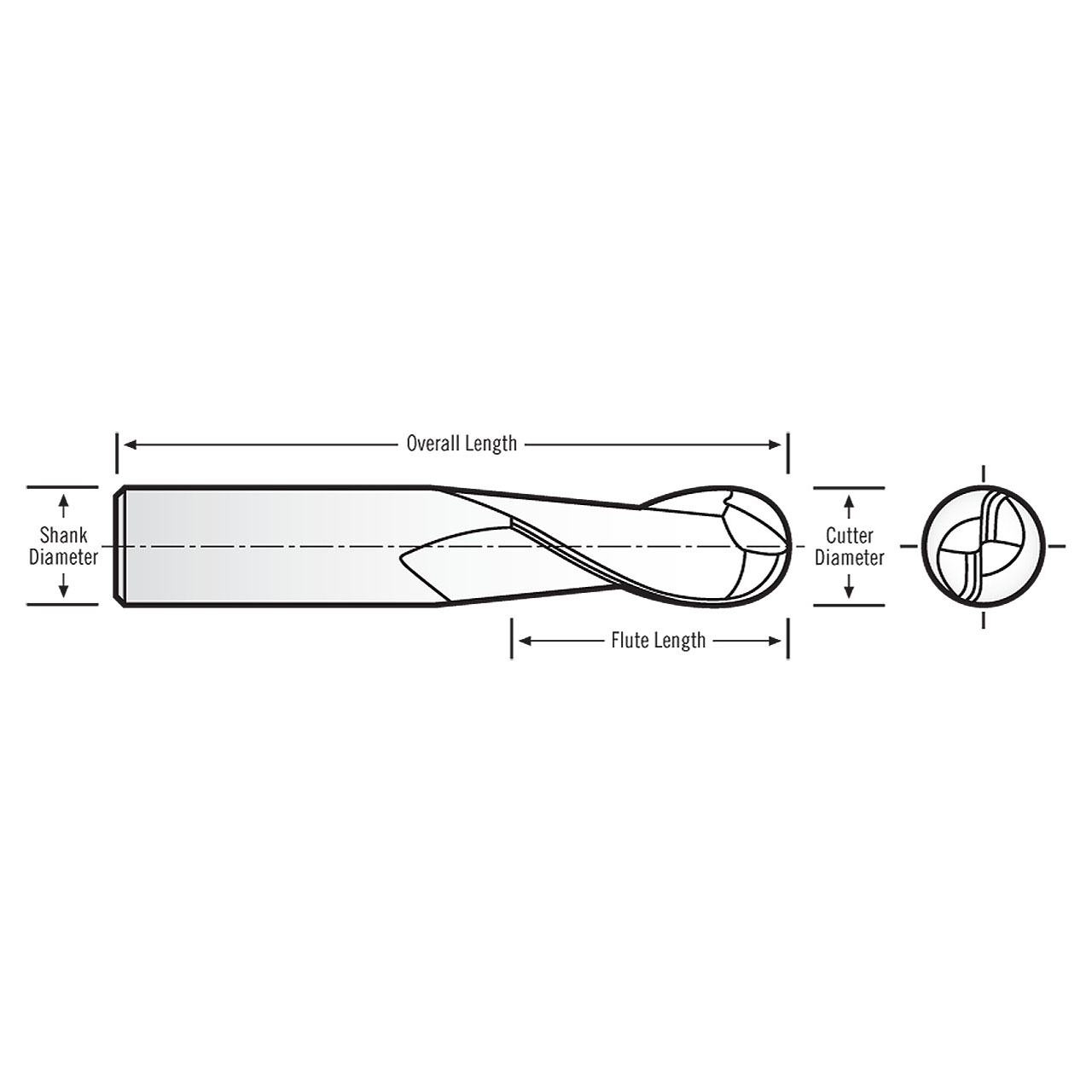

Product Specifications
| # Manufacturer Number | MB-203-16 |
| Cutting Diameter (mm) | 16.00mm |
| Shank Diameter (mm) | 16.00mm |
| Maximum Cutting Diameter (mm) | 0.63mm |
| Flute Length (mm) | 32.00mm |
| Overall Length (mm) | 92.00mm |
| Helix Angle (Degree) | 30 Degree |
| Helix Direction (Hand) | Right Hand |
| Cutting Direction (Hand) | Right Hand |
| Coating | Uncoated |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Number of Flutes:
2
Overall Length (Inch):
3-5/8"
Overall Length (Decimal Inch):
3.6200"
Overall Length (mm):
92.00mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6299"
Shank Diameter (mm):
16.00mm
Finish/Coating:
Uncoated
Cutting Direction:
Right Hand
Helix Angle (Degree):
30 Degree
