RobbJack MDM-204-0.8 | 0.80mm Diameter x 6.00mm Shank x 63.00mm OAL 2 Flute AlTiN Coated Ball End Mill

$59.58
Brand:
RobbJack
Mill Diameter (Inch):
1/32"
Mill Diameter (Decimal Inch):
0.0300"
Mill Diameter (mm):
0.80mm
Number of Flutes:
2
Overall Length (Inch):
2-31/64"
Overall Length (Decimal Inch):
2.4800"
Overall Length (mm):
63.00mm
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2400"
Shank Diameter (mm):
6.00mm
Finish/Coating:
AlTiN
Cutting Direction:
Right Hand
Helix Angle (Degree):
30 Degree
SKU:
25204645
Weight:
0.23 LBS
Shipping:
Calculated at Checkout
RobbJack MDM-204-0.8 | 0.80mm Diameter x 6.00mm Shank x 63.00mm OAL 2 Flute AlTiN Coated Ball End Mill

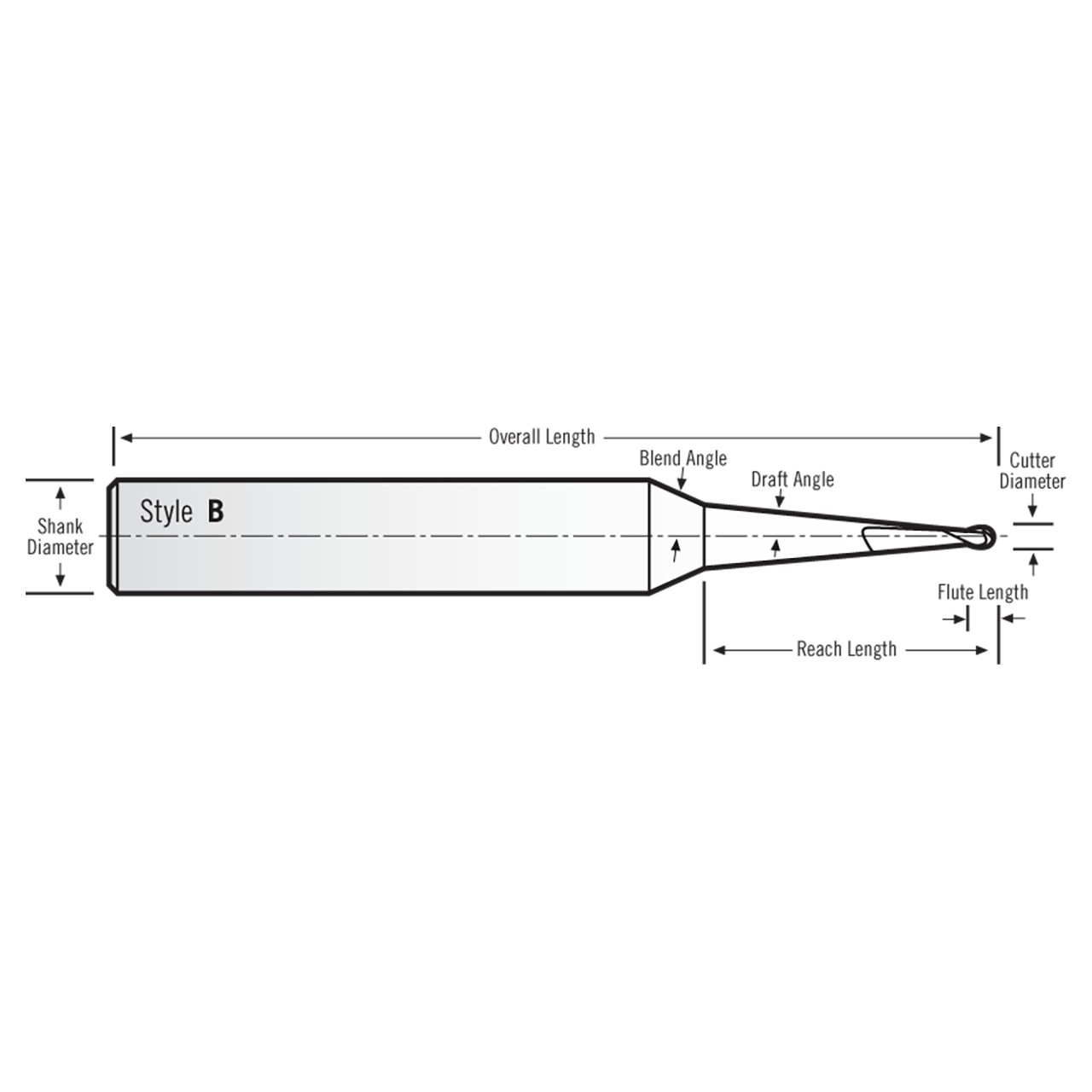

Product Specifications
Manufacturer Part NumberMDM-204-0.8
Cutting Diameter (Decimal Inch)0.80mm
Shank Diameter (Decimal Inch)6.00mm
Maximum Cut of Diamter (Decimal Inch)0.04mm
Overall Length (Decimal Inch)63.00mm
Flute Length (Decimal Inch)0.80mm
Reach Length (Decimal Inch)5.00mm
Neck Diameter (Decimal Inch)0.80mm
Corner Radius (Decimal Inch)0.40mm
Number of Flutes2
Helix Angle (Degree)30 Degree
Cutting DirectionRight Hand
Helix DirectionRight Hand
SeriesMDM-204
CoatingAlTiN
Product TypeBall End Mill
