Product Specifications

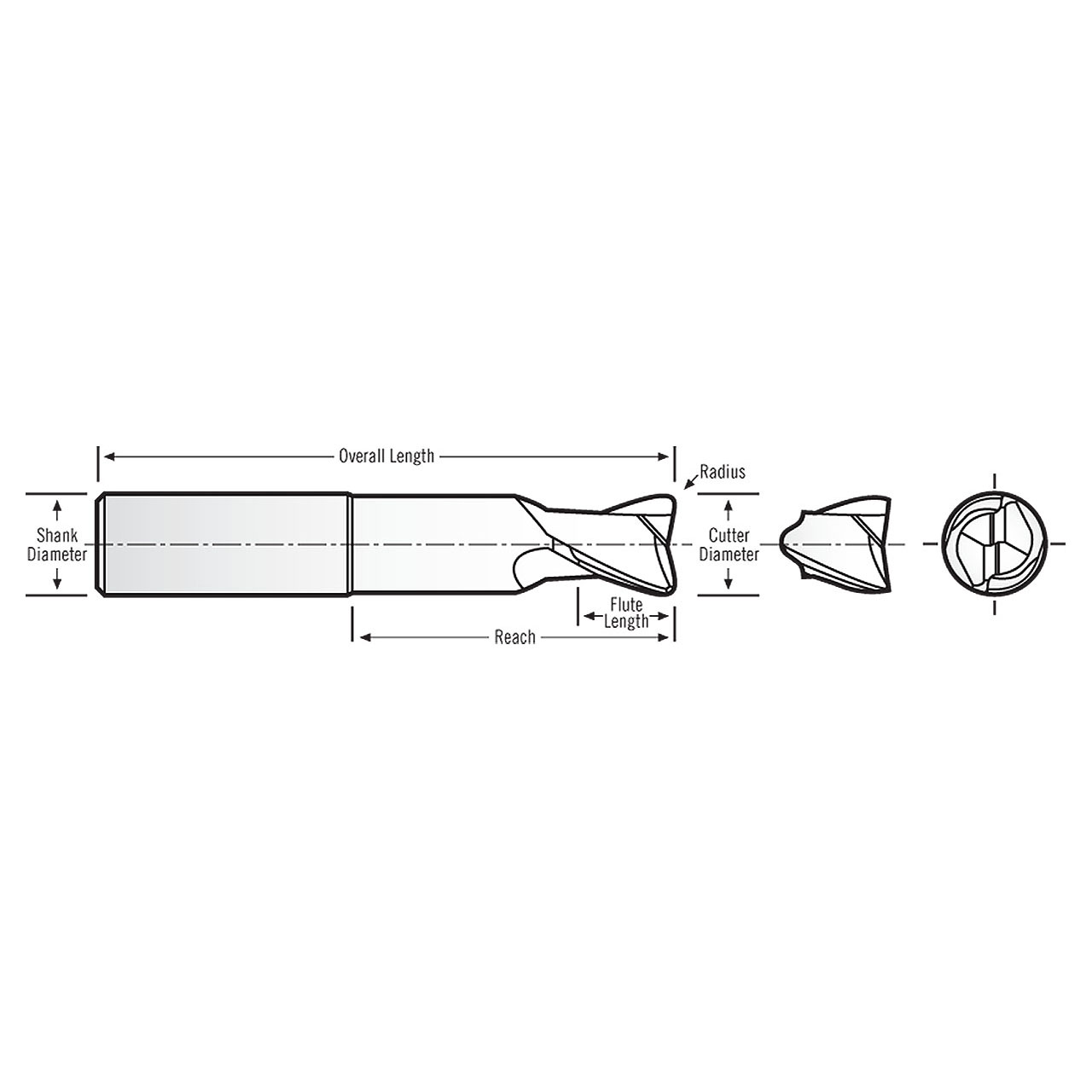

| # Manufacturer Number | MFM-204-06 |
| Cutting Diameter (mm) | 6.00mm |
| Shank Diameter (mm) | 6.00mm |
| Maximum Cutting Diameter (mm) | 0.21mm |
| Flute Length (mm) | 7.00mm |
| Overall Length (mm) | 75.00mm |
| Reach Length (mm) | 30.00mm |
| Neck Diameter (mm) | 5.70mm |
| Helix Angle (Degree) | 40 Degree |
| Helix Direction (Hand) | Right Hand |
| Cutting Direction (Hand) | Right Hand |
| Coating | Uncoated |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Number of Flutes:
2
Overall Reach (Inch):
1-3/16"
Overall Reach (Decimal):
1.1800"
Overall Reach (mm):
30.00mm
Finish/Coating:
Uncoated
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Overall Length (Inch):
2-61/64"
Overall Length (Decimal Inch):
2.9500"
Overall Length (mm):
75.00mm
Helix Angle:
40 Degree
Cutting Direction:
Right Hand
Mill Diameter (Inch):
15/64"
Mill Diameter (Decimal Inch):
0.2362"
Mill Diameter (mm):
6.00mm
