Product Specifications

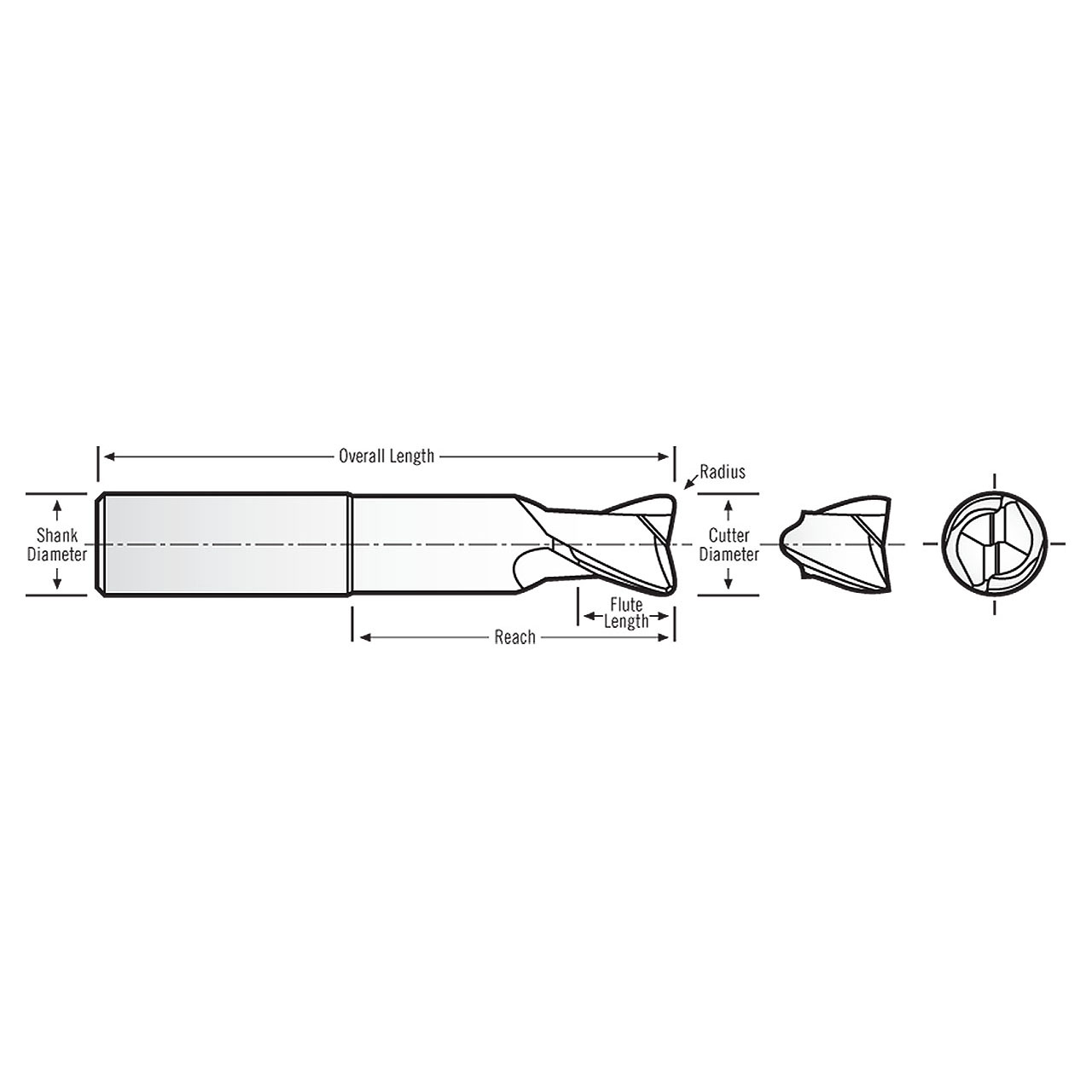

| # Manufacturer Number | MFM-204-16-DLC |
| Cutting Diameter (mm) | 16.00mm |
| Shank Diameter (mm) | 16.00mm |
| Maximum Cutting Diameter (mm) | 0.60mm |
| Flute Length (mm) | 17.00mm |
| Overall Length (mm) | 130.00mm |
| Reach Length (mm) | 80.00mm |
| Neck Diameter (mm) | 15.20mm |
| Helix Angle (Degree) | 40 Degree |
| Helix Direction (Hand) | Right Hand |
| Cutting Direction (Hand) | Right Hand |
| Coating | DLC Coated |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Number of Flutes:
2
Overall Reach (Inch):
3-5/32"
Overall Reach (Decimal):
3.1500"
Overall Reach (mm):
80.00mm
Finish/Coating:
DLC
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6300"
Shank Diameter (mm):
16.00mm
Overall Length (Inch):
5-1/8"
Overall Length (Decimal Inch):
5.1200"
Overall Length (mm):
130.00mm
Helix Angle:
40 Degree
Cutting Direction:
Right Hand
Mill Diameter (Inch):
5/8"
Mill Diameter (Decimal Inch):
0.6300"
Mill Diameter (mm):
16.00mm
