RobbJack MFM-301-06 | 6.00mm Diameter x 6.00mm Shank x 75.00mm OAL 3 Flute Uncoated Square End Mill

$77.35 $75.80
(You save $1.55)
Brand:
RobbJack
Mill Diameter (Inch):
15/64"
Mill Diameter (Decimal Inch):
0.2362"
Mill Diameter (mm):
6.00mm
Number of Flutes:
3
Finish/Coating:
Uncoated
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Overall Length (mm):
75.00mm
Helix Angle:
40 Degree
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
25204929
UPC:
Weight:
0.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
RobbJack MFM-301-06 | 6.00mm Diameter x 6.00mm Shank x 75.00mm OAL 3 Flute Uncoated Square End Mill

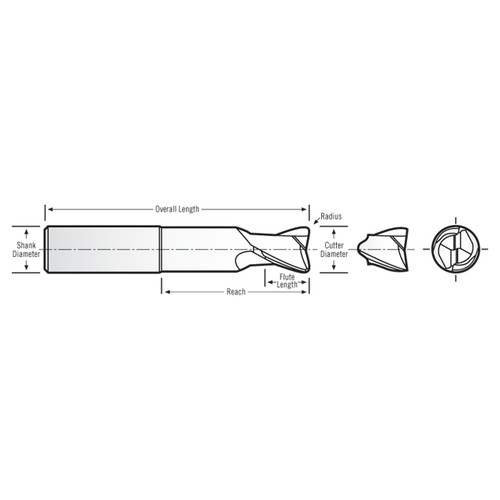

Product Specifications
Manufacturer Part NumberMFM-301-06
Cutting Diameter (Decimal Inch)6.00mm
Shank Diameter (Decimal Inch)6.00mm
Maximum Cut of Diamter (Decimal Inch)0.24mm
Overall Length (Decimal Inch)75.00mm
Flute Length (Decimal Inch)7.00mm
Reach Length (Decimal Inch)12.00mm
Neck Diameter (Decimal Inch)5.70mm
Number of Flutes3
Helix Angle (Degree)40 Degree
Cutting DirectionRight Hand
Helix DirectionRight Hand
SeriesMFM-301
CoatingUncoated
Product TypeSquare End Mill
