Product Specifications

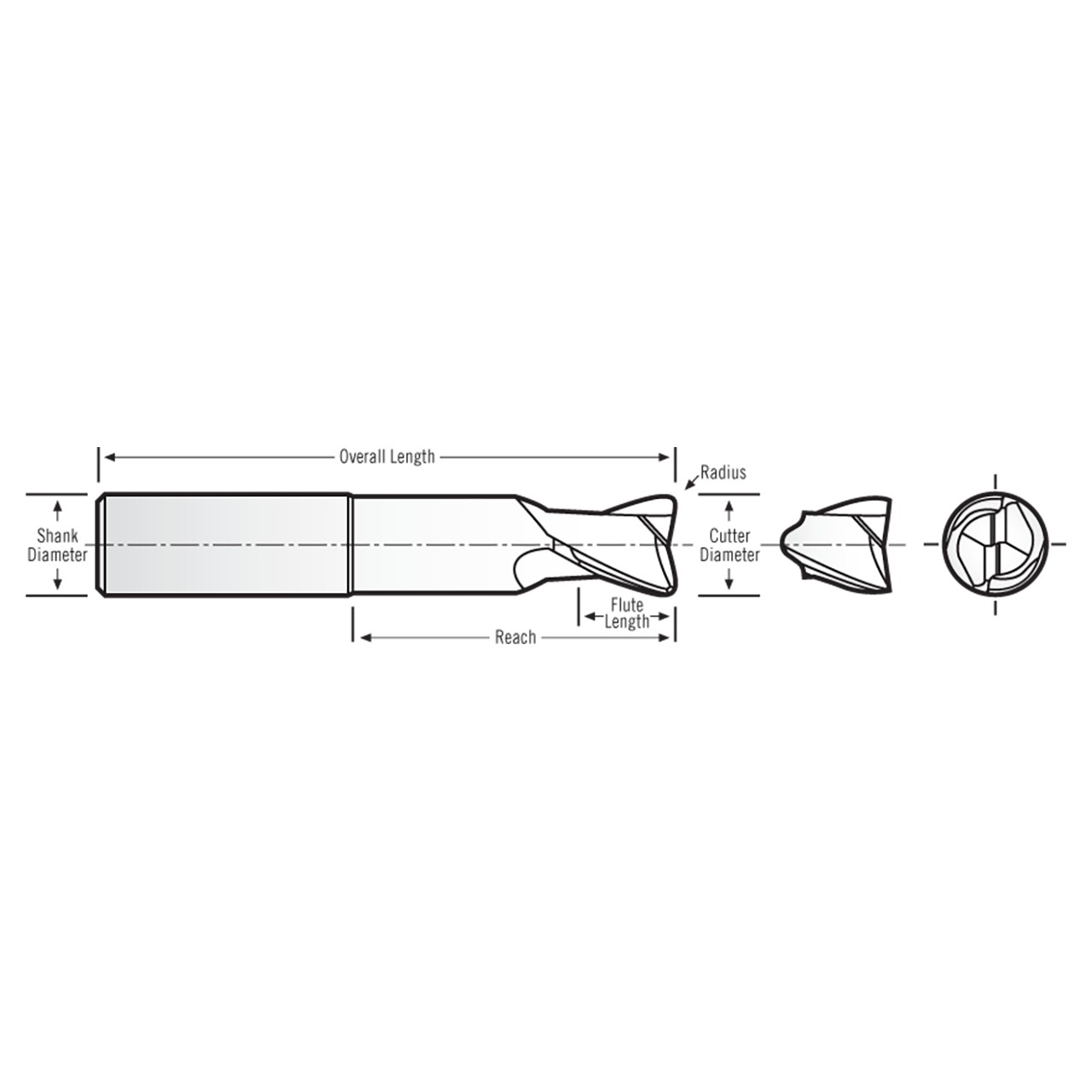

| Manufacturer Part Number | MFM-301-25 |
| Cutting Diameter (Decimal Inch) | 25.00mm |
| Shank Diameter (Decimal Inch) | 25.00mm |
| Maximum Cut of Diamter (Decimal Inch) | 0.98mm |
| Overall Length (Decimal Inch) | 165.00mm |
| Flute Length (Decimal Inch) | 26.00mm |
| Reach Length (Decimal Inch) | 50.00mm |
| Neck Diameter (Decimal Inch) | 23.80mm |
| Number of Flutes | 3 |
| Helix Angle (Degree) | 40 Degree |
| Cutting Direction | Right Hand |
| Helix Direction | Right Hand |
| Series | MFM-301 |
| Coating | Uncoated |

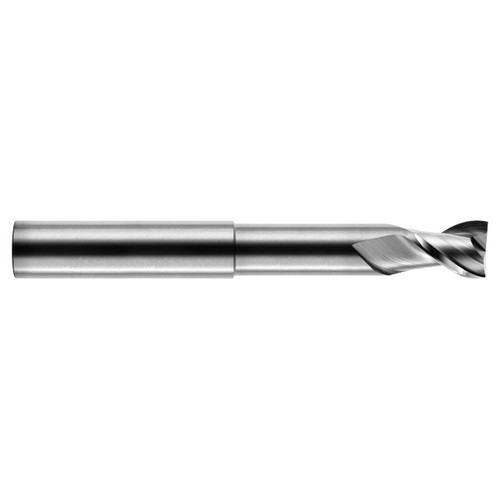

| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Mill Diameter (Inch):
63/64"
Mill Diameter (Decimal Inch):
0.9843"
Mill Diameter (mm):
25.00mm
Number of Flutes:
3
Finish/Coating:
Uncoated
Shank Diameter (Inch):
63/64"
Shank Diameter (Decimal Inch):
0.9843"
Shank Diameter (mm):
25.00mm
Overall Length (mm):
165.00mm
Helix Angle:
40 Degree
Cutting Direction:
Right Hand
