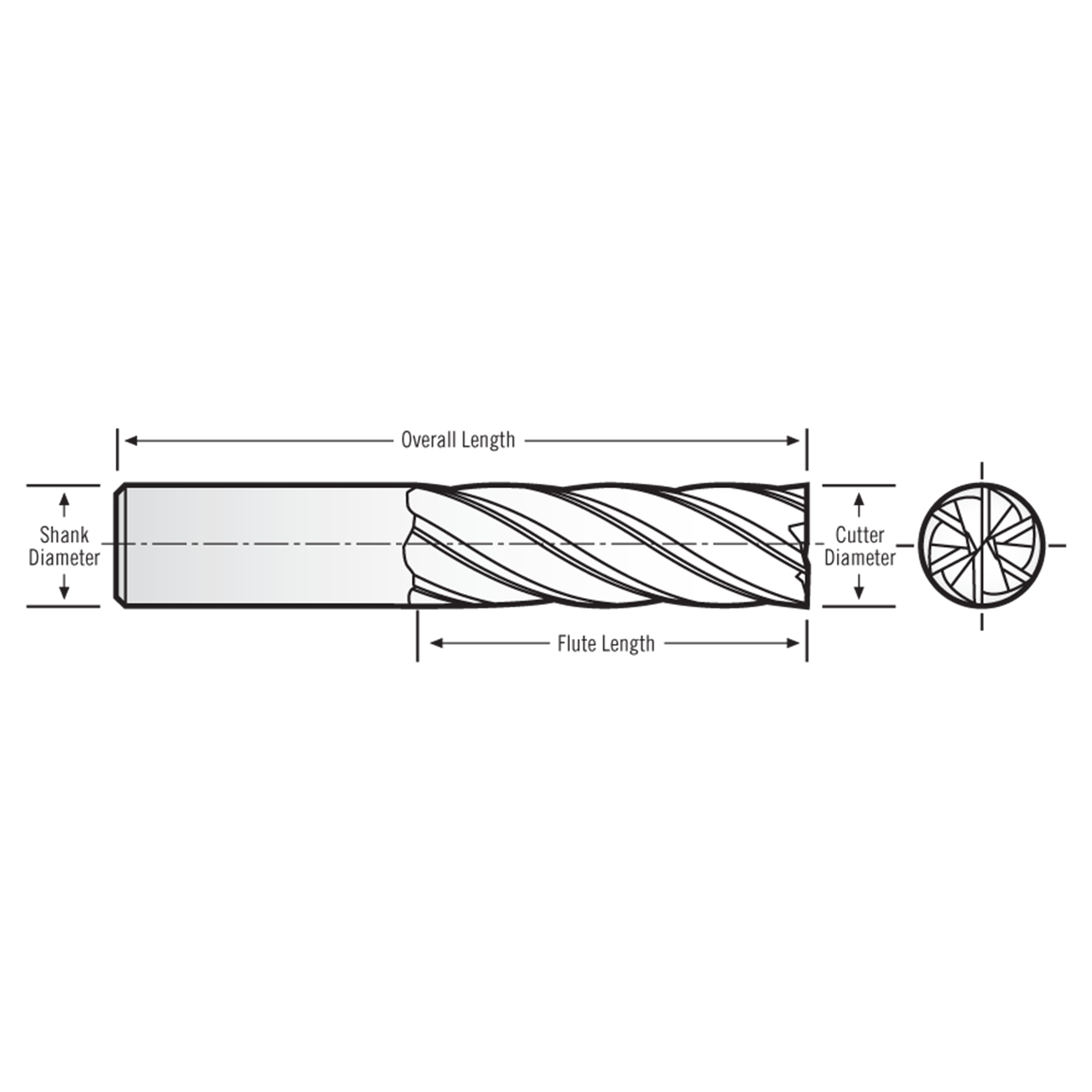

Product Specifications
| Manufacturer Part Number | MST-646-16-T |
| Cutting Diameter (mm) | 16.00mm |
| Shank Diameter (Imm) | 16.00mm |
| Maximum Cutting of Diameter (mm) | 0.65mm |
| Overall Length (mm) | 92.00mm |
| Flute Length (mm) | 32.00mm |
| Corner Chamfer (mm) | 0.20mm |
| Number of Flutes | 6 |
| Helix Angle (Degree) | 40 Degree |
| Chamfer Angle (Degree) | 45 Degree |
| Cutting Direction | Right Hand |
| Helix Direction | Right Hand |
| Series | MST-646 |
| Coating | TiN |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Mill Diameter (Inch):
5/8"
Mill Diameter (Decimal Inch):
0.6300"
Mill Diameter (mm):
16.00mm
Number of Flutes:
6
Finish/Coating:
TiN
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6300"
Shank Diameter (mm):
16.00mm
Overall Length (Inch):
3-5/8"
Overall Length (Decimal Inch):
3.6200"
Overall Length (mm):
92.00mm
Cutting Direction:
Right Hand
