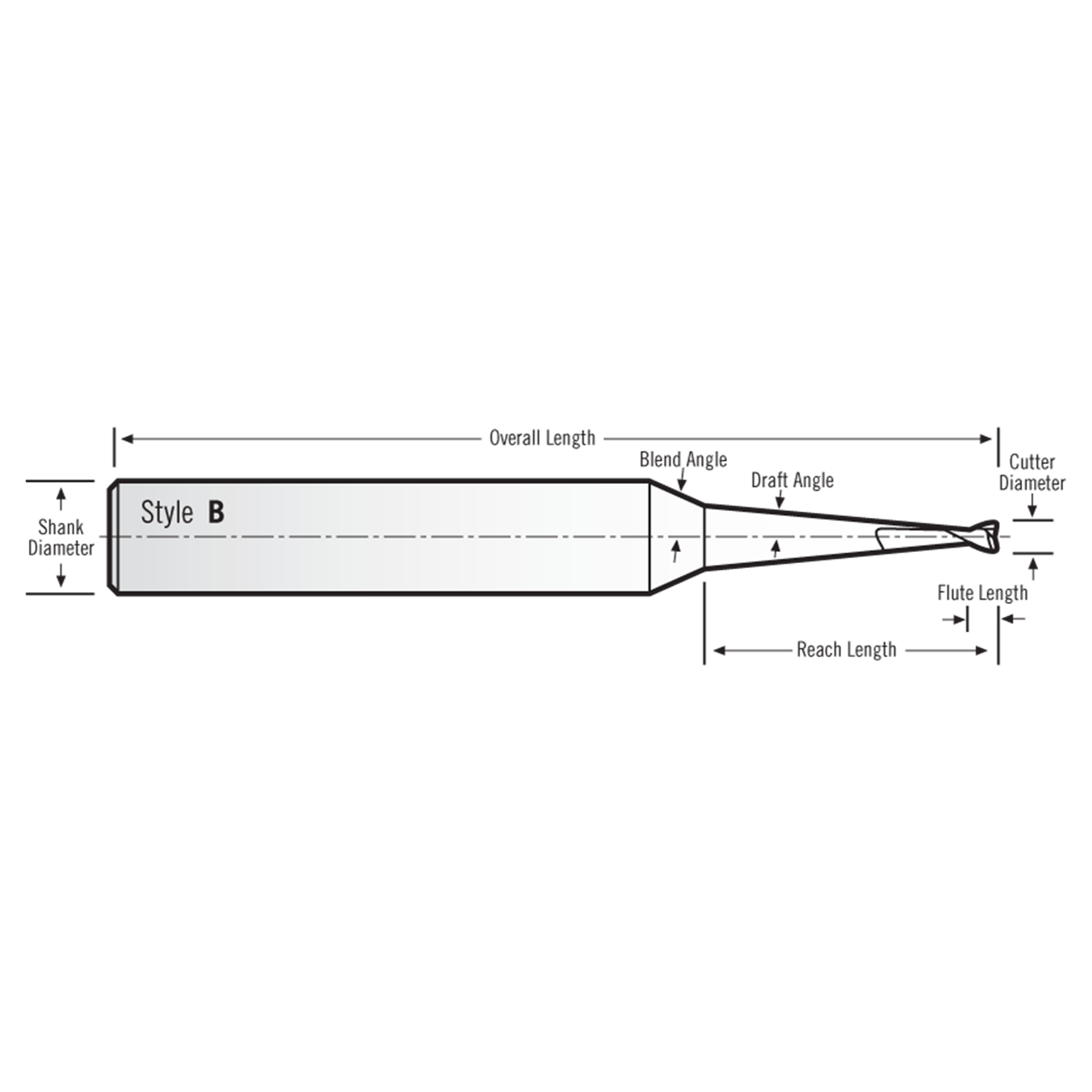

RobbJack MTM-202-02 | 2.00mm Diameter x 6.00mm Shank x 63.00mm OAL 2 Flute AlTiN Coated Square End Mill

$56.84
Brand:
RobbJack
Mill Diameter (Inch):
5/64"
Mill Diameter (Decimal Inch):
0.0800"
Mill Diameter (mm):
2.00mm
Number of Flutes:
2
Finish/Coating:
AlTiN
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2400"
Shank Diameter (mm):
6.00mm
Overall Length (Inch):
2-31/64"
Overall Length (Decimal Inch):
2.4800"
Overall Length (mm):
63.00mm
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
SKU:
25205936
Weight:
0.23 LBS
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part NumberMTM-202-02
Cutting Diameter (mm)2.00mm
Shank Diameter (Imm)6.00mm
Maximum Cutting of Diameter (mm)0.08mm
Overall Length (mm)63.00mm
Flute Length (mm)2.00mm
Reach Length (mm)5.00mm
Neck Diameter (mm)1.90mm
Corner Radius (mm)0.50mm
Number of Flutes2
Helix Angle (Degree)30 Degree
Cutting DirectionRight Hand
Helix DirectionRight Hand
SeriesMTM-202
CoatingAlTiN
Product TypeSquare End Mill
