RobbJack MTM-205-0.8 | 0.80mm Diameter x 6.00mm Shank x 63.00mm OAL 2 Flute AlTiN Coated Square End Mill

$64.58
Brand:
RobbJack
Mill Diameter (Inch):
1/32"
Mill Diameter (Decimal Inch):
0.0315"
Mill Diameter (mm):
0.80mm
Number of Flutes:
2
Finish/Coating:
AlTiN
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Overall Length (mm):
63.00mm
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
SKU:
25205953
Weight:
0.23 LBS
Shipping:
Calculated at Checkout
RobbJack MTM-205-0.8 | 0.80mm Diameter x 6.00mm Shank x 63.00mm OAL 2 Flute AlTiN Coated Square End Mill

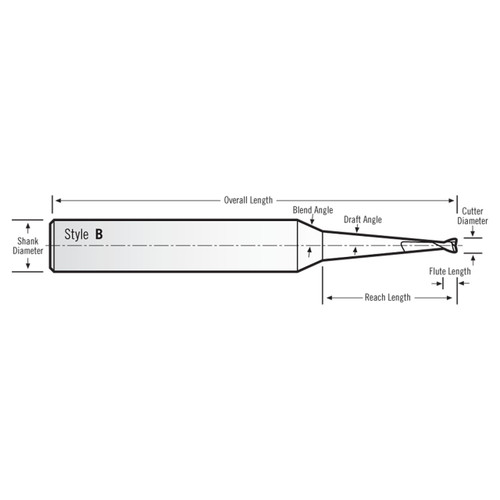

Product Specifications
Manufacturer Part NumberMTM-205-0.8
Cutting Diameter (Decimal Inch)0.80mm
Shank Diameter (Decimal Inch)6.00mm
Maximum Cut of Diamter (Decimal Inch)0.03mm
Overall Length (Decimal Inch)63.00mm
Flute Length (Decimal Inch)0.80mm
Reach Length (Decimal Inch)15.00mm
Neck Diameter (Decimal Inch)0.80mm
Corner Radius (Decimal Inch)0.20mm
Number of Flutes2
Helix Angle (Degree)30 Degree
Cutting DirectionRight Hand
Helix DirectionRight Hand
SeriesMTM-205
CoatingAlTiN
Product TypeSquare End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
RobbJack
Mill Diameter (Inch):
1/32"
Mill Diameter (Decimal Inch):
0.0315"
Mill Diameter (mm):
0.80mm
Number of Flutes:
2
Finish/Coating:
AlTiN
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Overall Length (mm):
63.00mm
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
