Product Specifications

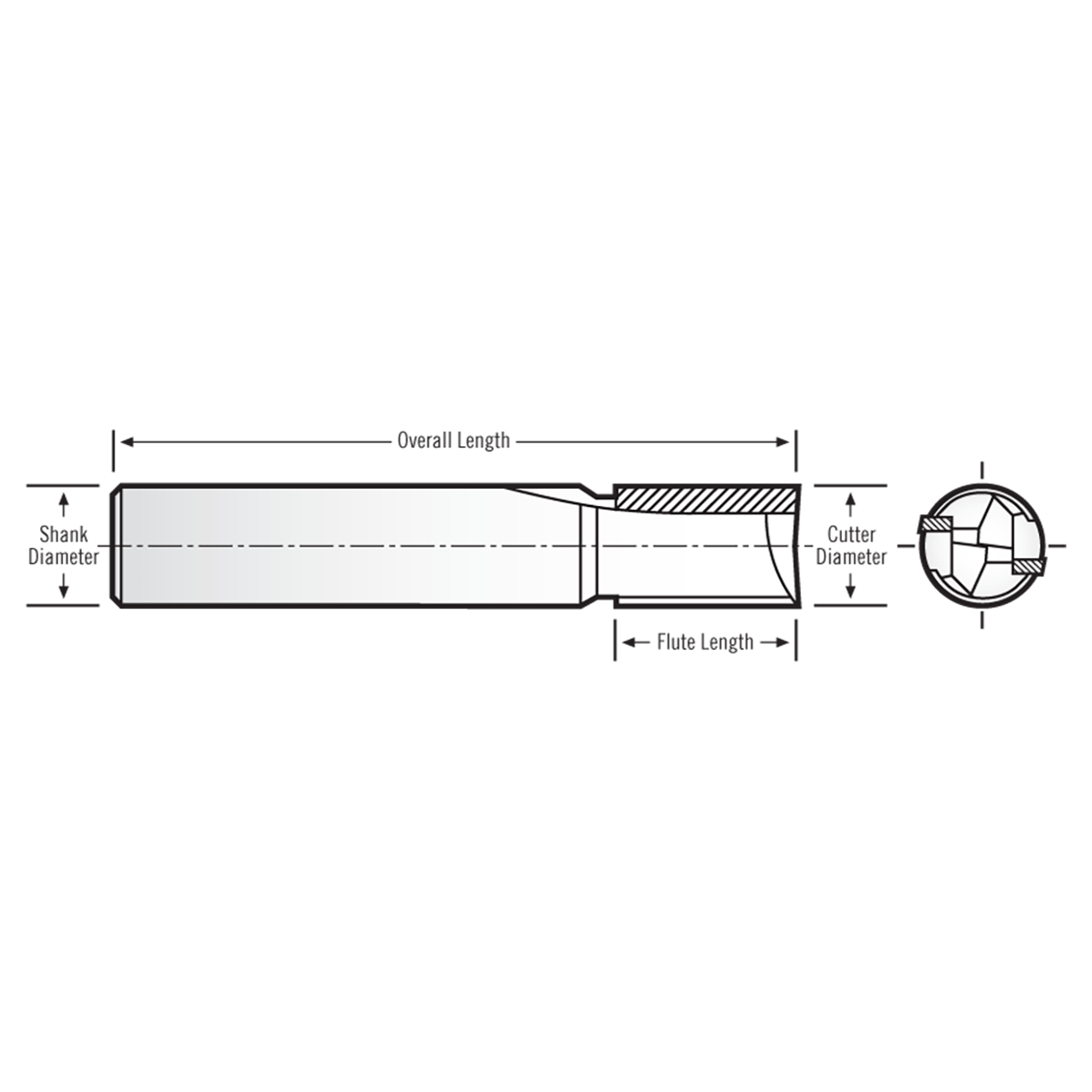

| Manufacturer Part Number | PCD-203-24-CF |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (Decimal Inch) | 0.750" |
| Maximum Cutting of Diameter (Decimal Inch) | 0.753" |
| Overall Length (Decimal Inch) | 4.000" |
| Flute Length (Decimal Inch) | 1.000" |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 30 Degree |
| Series | PCD-203-CF |
| Coating | Uncoated |
| Product Type | Straight Router Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Cutting Diameter (Inch):
3/4"
Cutting Diameter (Decimal Inch):
0.7500"
Cutting Diameter (mm):
19.05mm
Number of Flutes:
2
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
