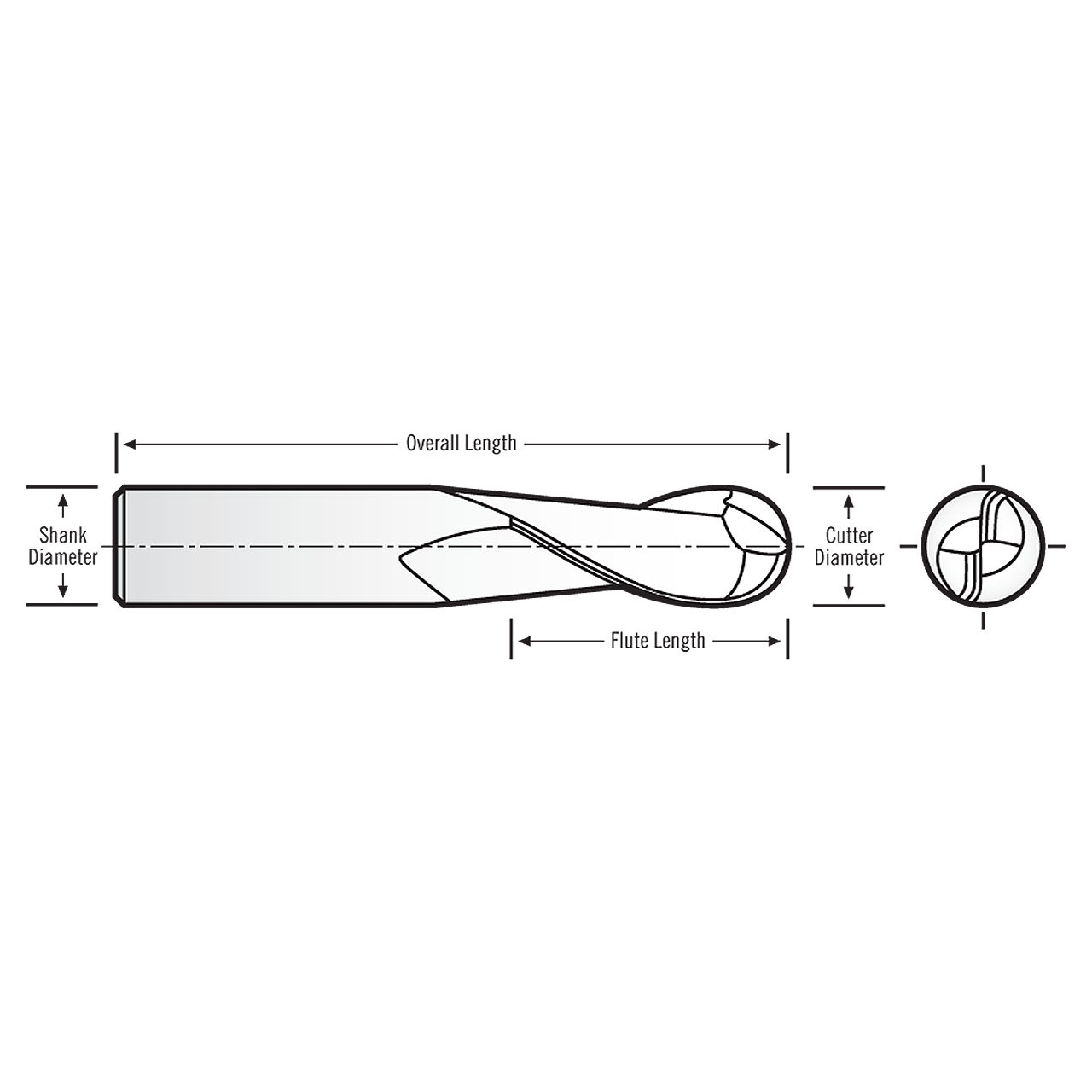

RobbJack SB-201-09-C | 0.281" Diameter x 0.313" Shank x 2.500" OAL 2 Flute TiCN Coated Ball End Mill

$51.79
Brand:
RobbJack
Mill Diameter (Inch):
9/32"
Mill Diameter (Decimal Inch):
0.2810"
Mill Diameter (mm):
7.14mm
Number of Flutes:
2
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3130"
Shank Diameter (mm):
7.95mm
Finish/Coating:
TiCN
Cutting Direction:
Right Hand
Helix Angle (Degree):
30 Degree
SKU:
25206555
Weight:
0.23 LBS
Shipping:
Calculated at Checkout
RobbJack SB-201-09-C | 0.281" Diameter x 0.313" Shank x 2.500" OAL 2 Flute TiCN Coated Ball End Mill

Product Specifications
Manufacturer Part NumberSB-201-09-C
Cutting Diameter (Decimal Inch)0.281"
Shank Diameter (Decimal Inch)0.313"
Maximum Cutting of Diameter (Decimal Inch)0.281"
Overall Length (Decimal Inch)2.500"
Flute Length (Decimal Inch)0.438"
Corner Radius (Decimal Inch)0.141"
Number of Flutes2
Helix Angle (Degree)30 Degree
Cutting DirectionRight Hand
Helix DirectionRight Hand
SeriesSB-201
CoatingTiCN
Product TypeBall End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
RobbJack
Mill Diameter (Inch):
9/32"
Mill Diameter (Decimal Inch):
0.2810"
Mill Diameter (mm):
7.14mm
Number of Flutes:
2
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3130"
Shank Diameter (mm):
7.95mm
Finish/Coating:
TiCN
Cutting Direction:
Right Hand
Helix Angle (Degree):
30 Degree
