Product Specifications
| # Manufacturer Number | ST-341-08-C |
| Cutting Diameter (Inch) | 0.2500" |
| Shank Diameter (Inch) | 0.2500" |
| Maximum Cutting Diameter (Inch) | 0.2500" |
| Flute Length (Inch) | 0.5000" |
| Overall Length (Inch) | 2.5000" |
| Corner Chamfer (Inch) | 0.0030" |
| Corner Chamfer (Degree) | 45 Degree |
| Helix Angle (Degree) | 40 Degree |
| Helix Direction (Hand) | Right Hand |
| Cutting Direction (Hand) | Right Hand |
| Number of Flute | 3 |
| Coating | TiCN Coated |

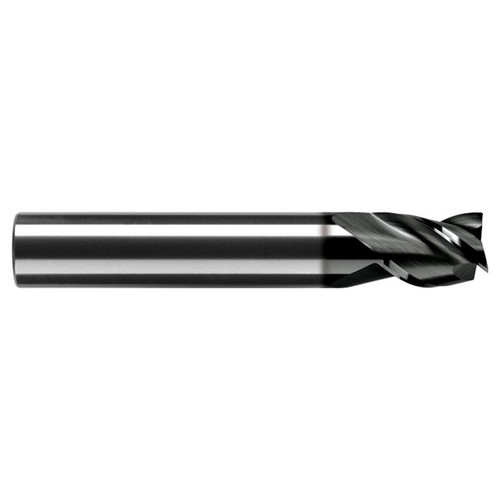

| Product Type | Corner Chamfer End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Mill Diameter (mm):
6.35mm
Number of Flutes:
3
Finish/Coating:
TiCN
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Cutting Direction:
Right Hand
