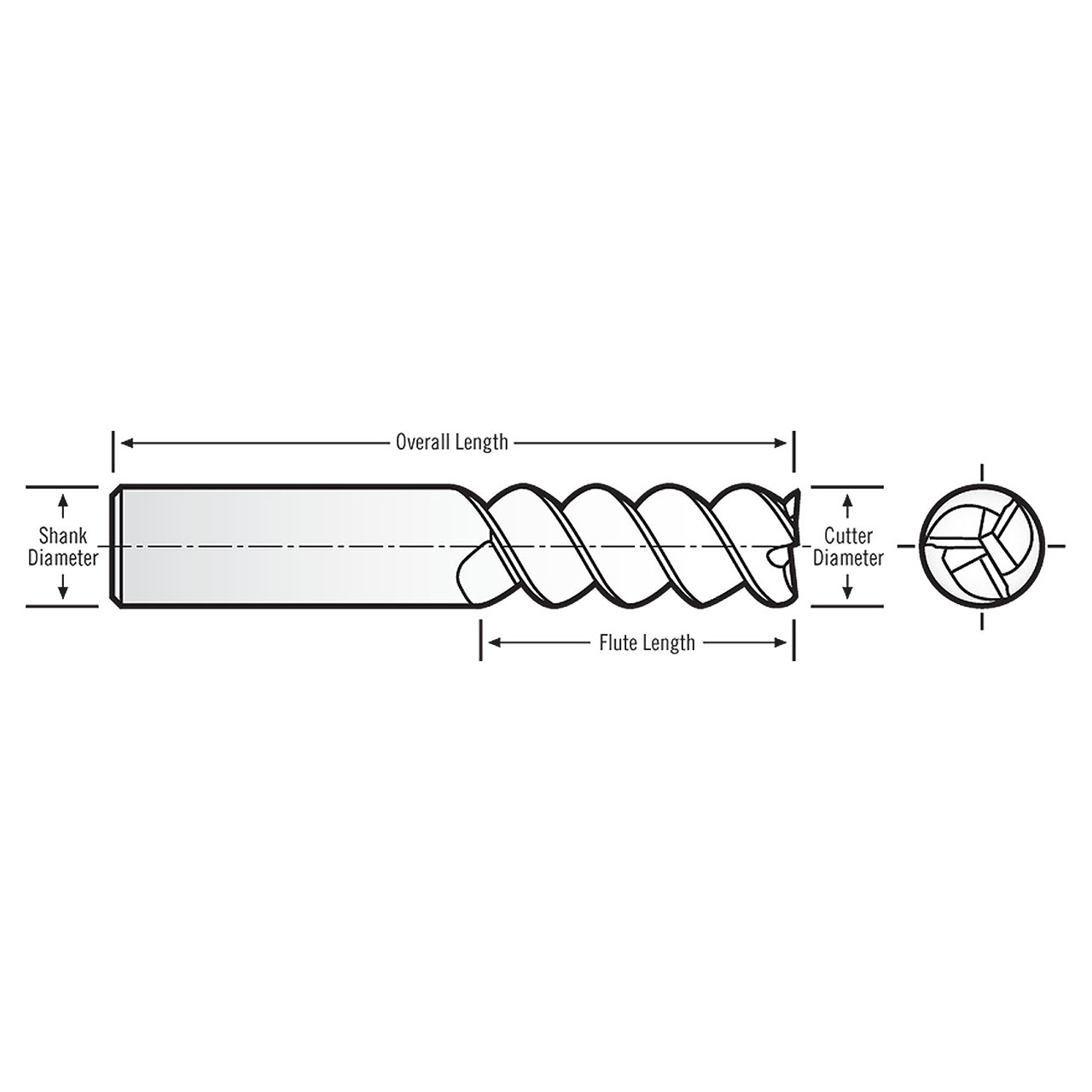

Product Specifications
| # Manufacturer Number | ST-360-18-C |
| Cutting Diameter (Inch) | 0.5625" |
| Shank Diameter (Inch) | 0.5625" |
| Maximum Cutting Diameter (Inch) | 0.5625" |
| Flute Length (Inch) | 1.2500" |
| Overall Length (Inch) | 3.5000" |
| Helix Angle (Degree) | 60 Degree |
| Helix Direction (Hand) | Right Hand |
| Cutting Direction (Hand) | Right Hand |
| Coating | TiCN Coated |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Number of Flutes:
3
Finish/Coating:
TiCN
Shank Diameter (Inch):
9/16"
Shank Diameter (Decimal Inch):
0.5625"
Shank Diameter (mm):
14.29mm
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.90mm
Helix Angle:
60 Degree
Cutting Direction:
Right Hand
Mill Diameter (Decimal Inch):
0.5625"
