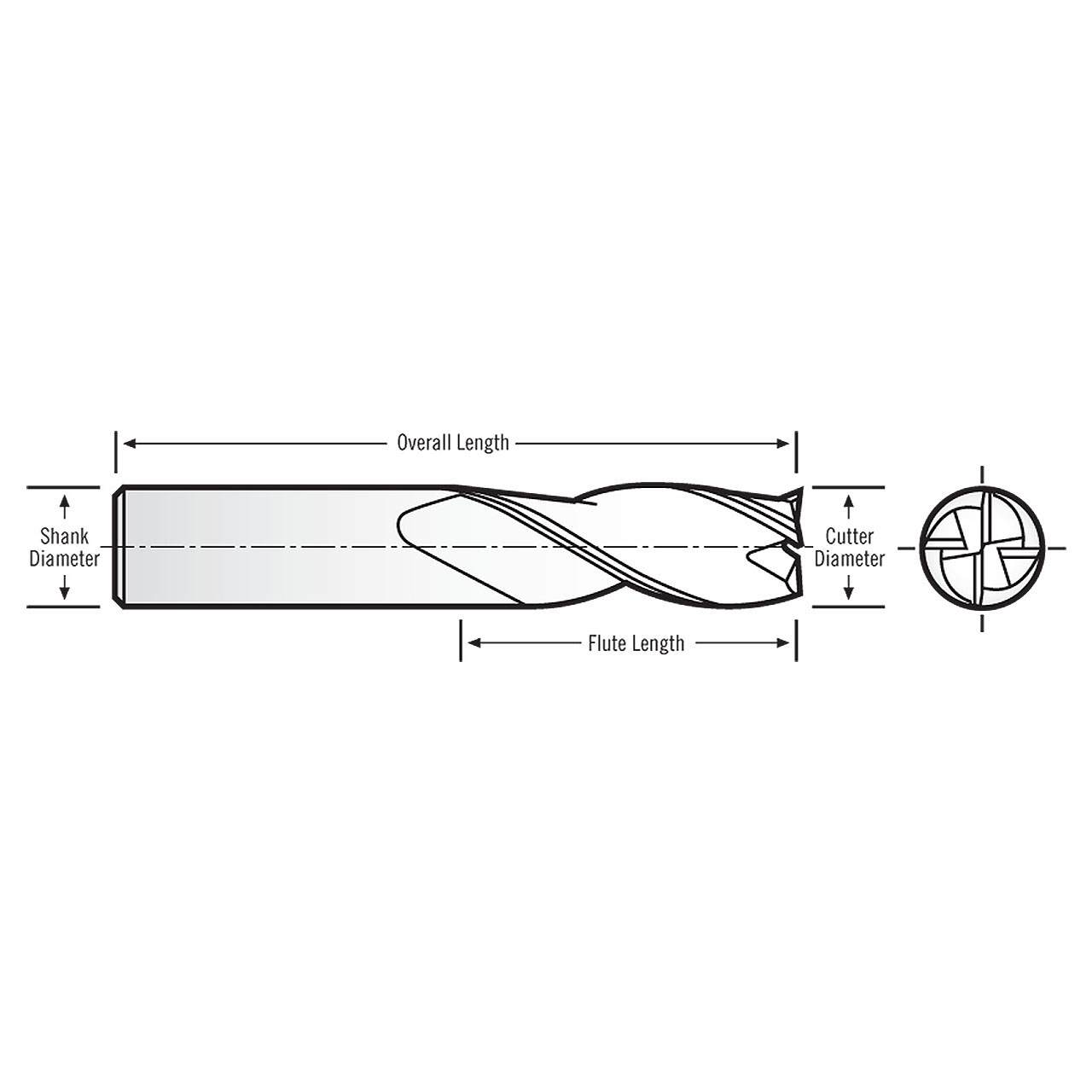

Product Specifications
| # Manufacturer Number | ST-434-24-A |
| Cutting Diameter (Inch) | 0.7500" |
| Shank Diameter (Inch) | 0.7500" |
| Maximum Cutting Diameter (Inch) | 0.7510" |
| Flute Length (Inch) | 1.5000" |
| Overall Length (Inch) | 4" |
| Corner Chamfer (Inch) | 0.0110" |
| Corner Chamfer (Degree) | 45 Degree |
| Helix Angle (Degree) | 30 Degree |
| Helix Direction (Hand) | Right Hand |
| Cutting Direction (Hand) | Right Hand |
| Coating | AlTiN Coated |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Number of Flutes:
4
Finish/Coating:
AlTiN
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
Mill Diameter (Decimal Inch):
0.7500"
