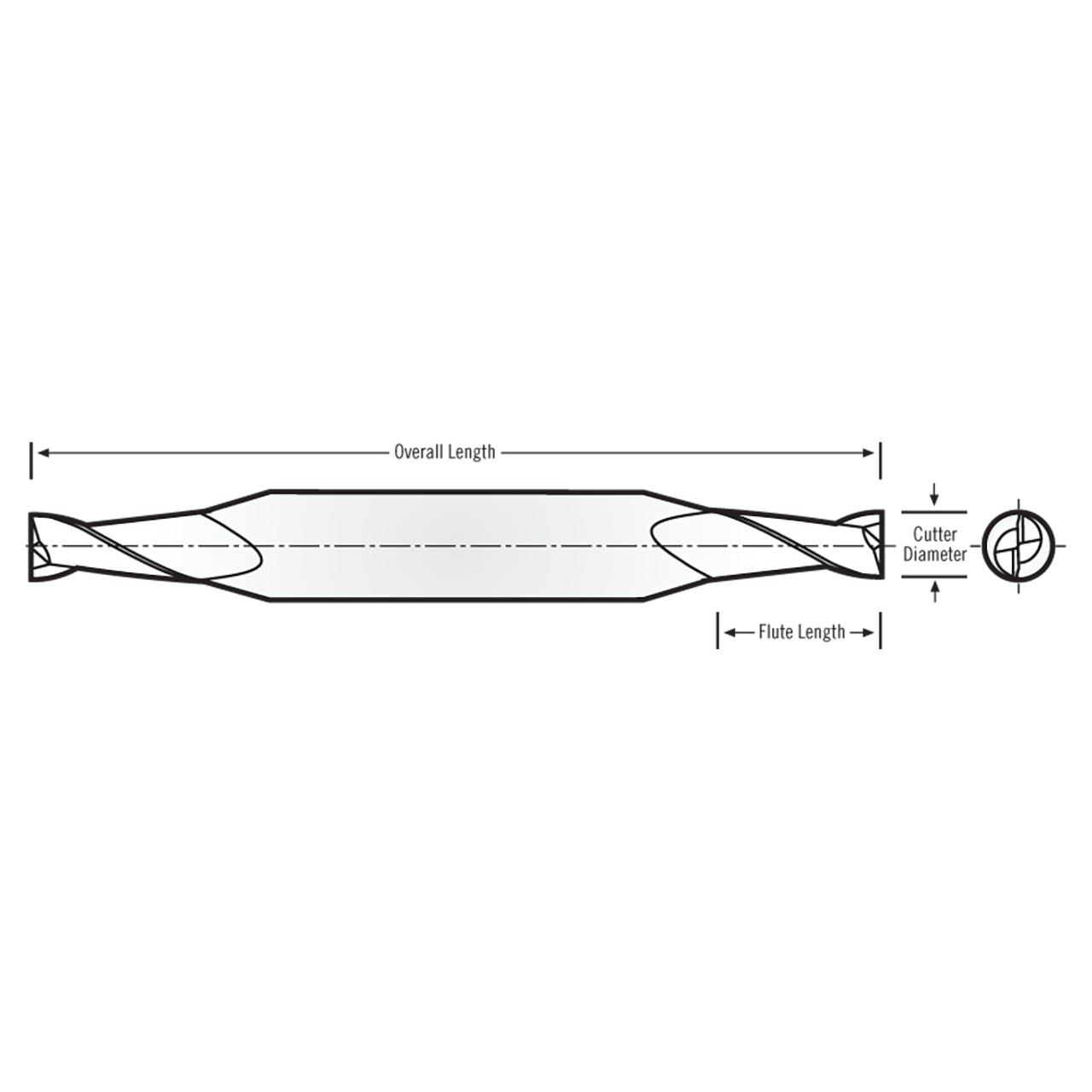

RobbJack T6-202-04.5-A | 0.1406" Diameter x 0.1875" Shank x 2.5000" OAL 2 Flute AlTiN Coated Double Ended Square End Mill

$63.41
Brand:
RobbJack
Mill Diameter (Inch):
9/64"
Mill Diameter (Decimal Inch):
0.1406"
Mill Diameter (mm):
3.57mm
Number of Flutes:
2
Finish/Coating:
AlTiN
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
SKU:
25208153
Weight:
0.23 LBS
Shipping:
Calculated at Checkout
RobbJack T6-202-04.5-A | 0.1406" Diameter x 0.1875" Shank x 2.5000" OAL 2 Flute AlTiN Coated Double Ended Square End Mill

Product Specifications
# Manufacturer NumberT6-202-04.5-A
Cutting Diameter (Inch)0.1406"
Shank Diameter (Inch)0.1875"
Maximum Cutting Diameter (Inch)0.1411"
Flute Length (Inch)0.4375"
Overall Length (Inch)2.5000"
Helix Angle (Degree)30 Degree
Helix Direction (Hand)Right Hand
Cutting Direction (Hand)Right Hand
Number of Flute2
CoatingAlTiN Coated
Product TypeDouble Ended Square End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
RobbJack
Mill Diameter (Inch):
9/64"
Mill Diameter (Decimal Inch):
0.1406"
Mill Diameter (mm):
3.57mm
Number of Flutes:
2
Finish/Coating:
AlTiN
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
