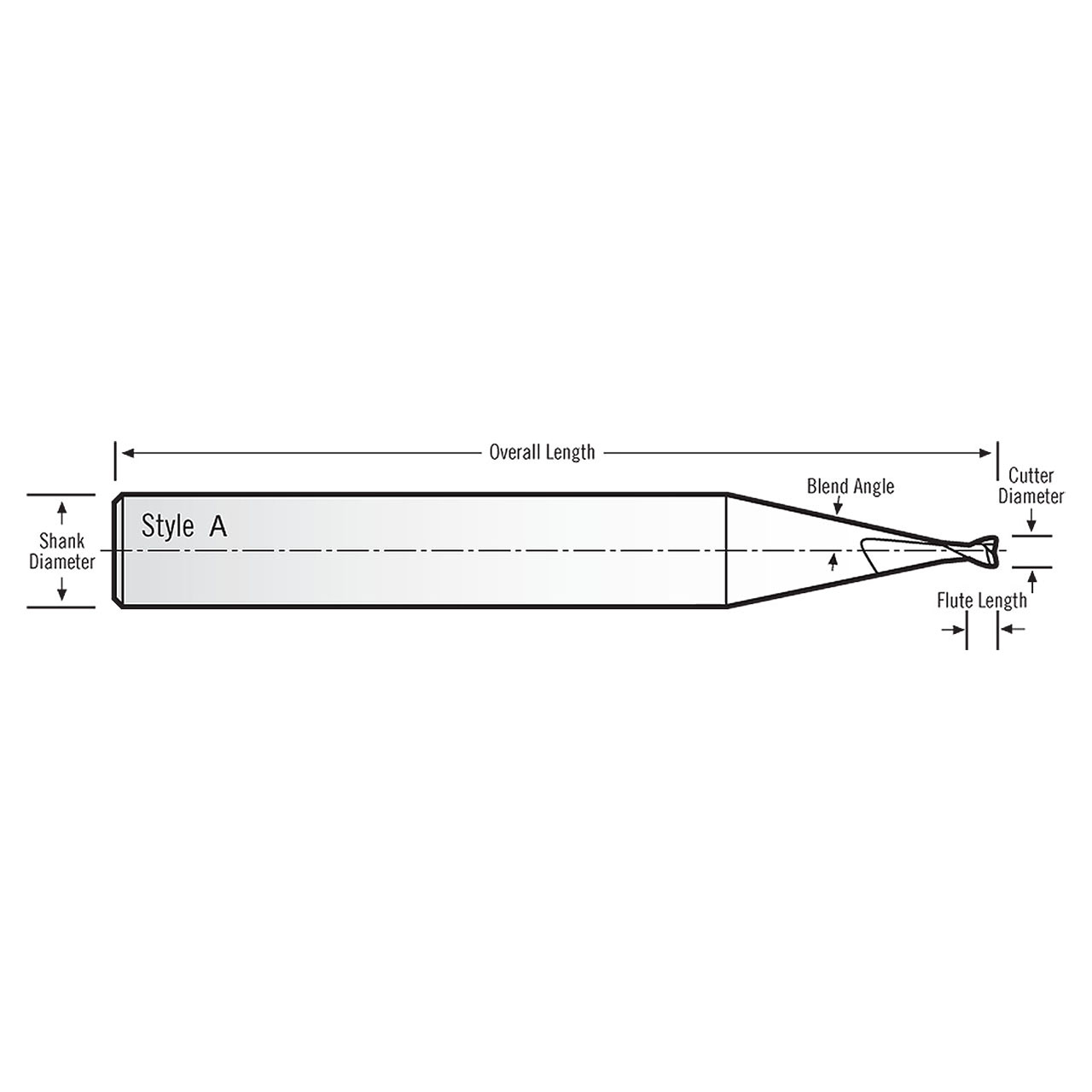

RobbJack TM-201-08 | 0.2500" Cutting Diameter x 0.2500" Shank x 3" OAL 2 Flute AlTiN Coated Square End Mill

$64.63
Brand:
RobbJack
Number of Flutes:
2
Finish/Coating:
AlTiN
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Mill Diameter (mm):
6.35mm
SKU:
25208280
Weight:
0.23 LBS
Shipping:
Calculated at Checkout

Product Specifications
# Manufacturer NumberTM-201-08
Cutting Diameter (Inch)0.2500"
Shank Diameter (Inch)0.2500"
Maximum Cutting Diameter (Inch)0.2490"
Flute Length (Inch)0.2500"
Overall Length (Inch)3"
Corner Radius (Inch)0.0400"
Helix Angle (Degree)30 Degree
Helix Direction (Hand)Right Hand
Cutting Direction (Hand)Right Hand
CoatingAlTiN Coated
Product TypeSquare End Mill
