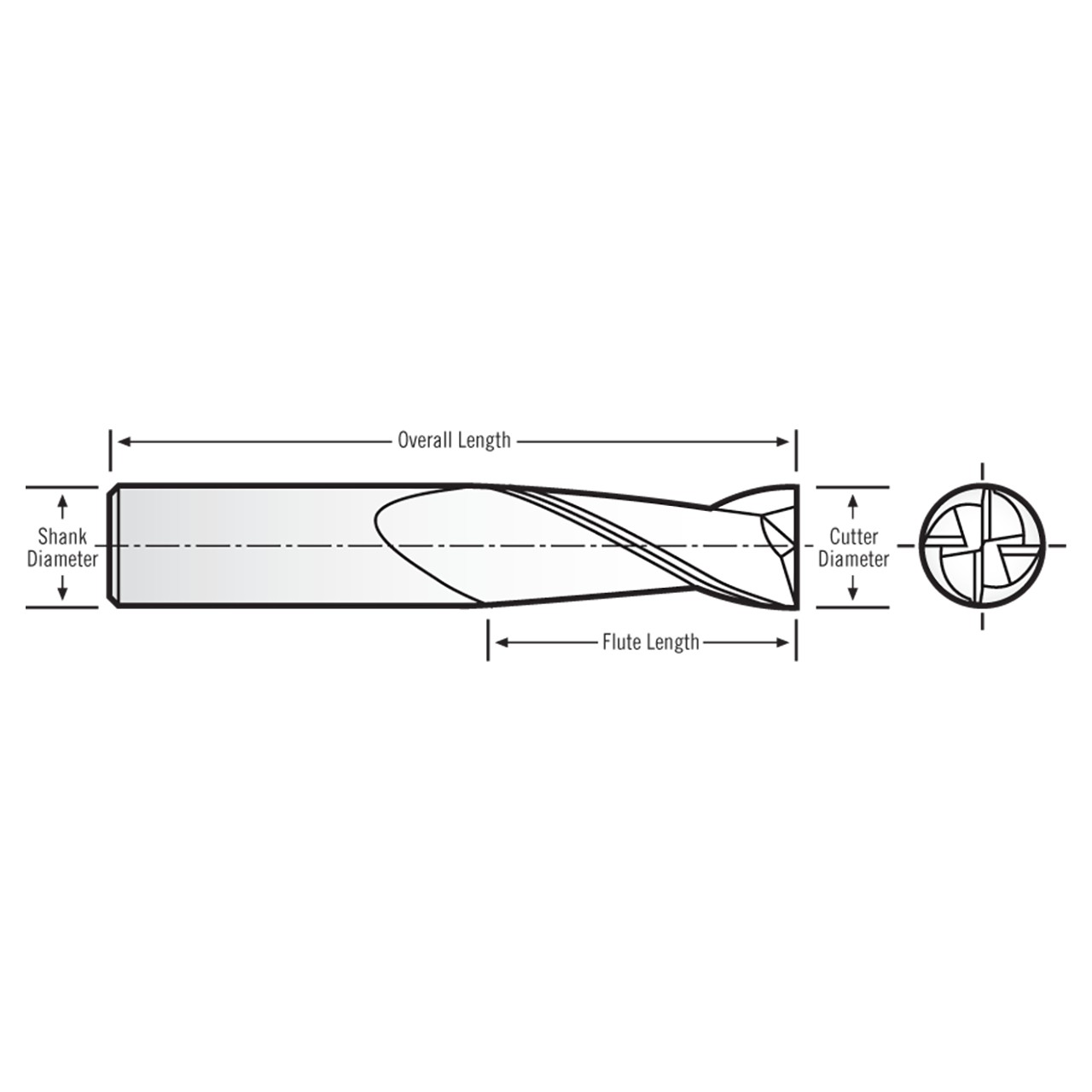

Product Specifications
| # Manufacturer Number | TS-401-04 |
| Cutting Diameter (Inch) | 0.1250" |
| Shank Diameter (Inch) | 0.1250" |
| Maximum Cutting Diameter (Inch) | 0.1250" |
| Flute Length (Inch) | 0.2500" |
| Overall Length (Inch) | 1.5000" |
| Helix Angle (Degree) | 30 Degree |
| Helix Direction (Hand) | Right Hand |
| Cutting Direction (Hand) | Right Hand |
| Number of Flute | 4 |
| Coating | Uncoated |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Mill Diameter (Inch):
1/8"
Mill Diameter (Decimal Inch):
0.1250"
Mill Diameter (mm):
3.18mm
Number of Flutes:
4
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
