Product Specifications

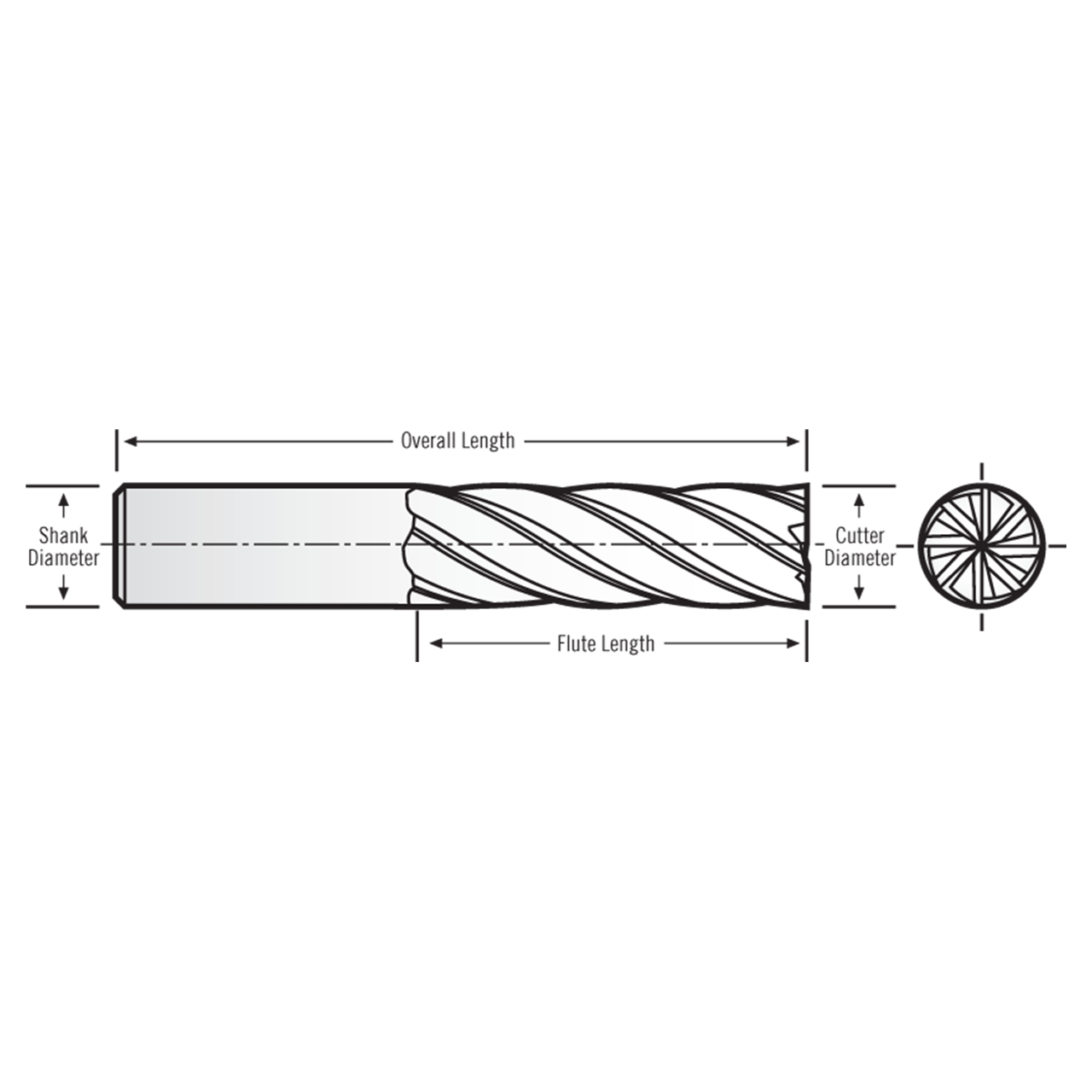

| Manufacturer Part Number | XF-802-32-120 |
| Cutting Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (Decimal Inch) | 1.000" |
| Maximum Cutting of Diameter (Decimal Inch) | 0.999" |
| Overall Length (Decimal Inch) | 5.000" |
| Flute Length (Decimal Inch) | 2.000" |
| Corner Radius (Decimal Inch) | 0.120" |
| Number of Flutes | 8 |
| Helix Angle (Degree) | 45 Degree |
| Cutting Direction | Right Hand |
| Helix Direction | Right Hand |
| Series | XF-802 |
| Coating | AlTiN |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
RobbJack
Mill Diameter (Inch):
1"
Mill Diameter (Decimal Inch):
1.0000"
Mill Diameter (mm):
25.40mm
Number of Flutes:
8
Corner Radius (Inch):
1/8"
Corner Radius (Decimal Inch):
0.1200"
Corner Radius (mm):
3.05mm
Finish/Coating:
AlTiN
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Overall Length (mm):
127.00mm
Cutting Direction:
Right Hand
