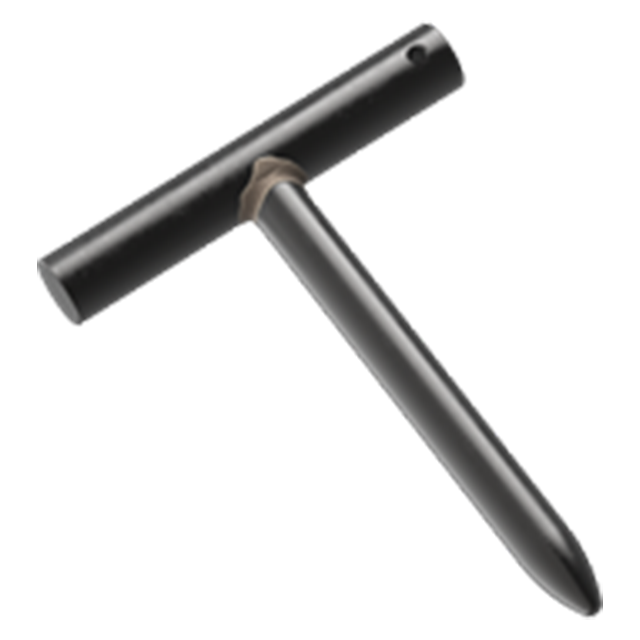

T Pins
T Pins are removable locating pins, precision ground for accurately aligning holes. The pin body is inset into a solid handle and silver soldered to create a sturdy assembly. The handle end has a small hole for attaching an optional cable. Made in USA.
Application Information
T Pins can be used for accurately aligning two plates
Optional Cable
To order T Pins with a standard cable assembly attached, add "-C" to the part number.
Material
Item | Material | Heat Treat | Finish |
Pin | 1215 Steel | Carburized-hardened | Black Oxide |
Handle | 1215 Steel | - | Black Oxide |
Parts Specification
A Diameter (mm) | B (mm) | C (mm) | D Diameter (mm) | E (mm) |
16mm | 152mm | 89mm | 22mm | 17.5mm |
