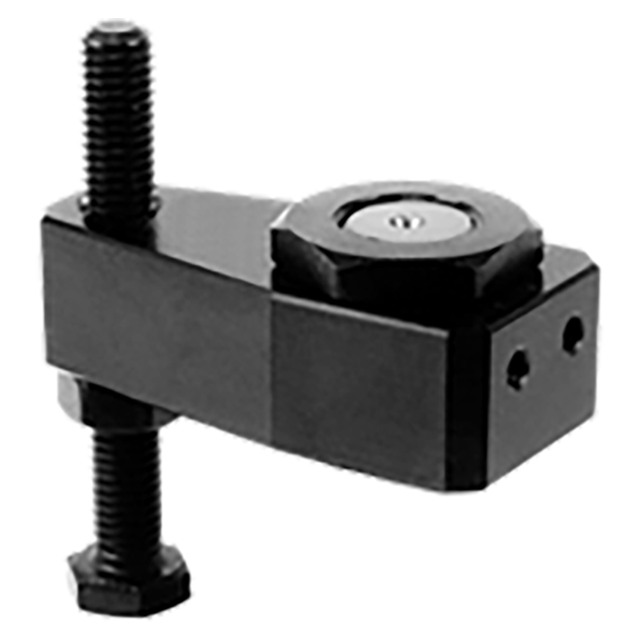

Standard Clamping Arms-Robust
5000 psi maxThese clamping arms are designed specifically for the Robust Swing Clamps. They are compact yet provide considerable reach. An adjustable contact bolt is furnished.
Optional Untapped Version
Optional Position Monitoring
Mounting
Mount arm on the tapered piston rod at desired orientation, then fasten with the piston-rod nut included with Swing Clamp.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Arm | alloy steel | - | Black Oxide | Yes | Yes |
| Contact Bolt | Steel, Grade 8 | - | Black Oxide | Yes | Yes |
Parts Specification
| Clamp Size | A (mm) | B (mm) | C (mm) | C1 (mm) | D Rod Diameter (mm) | E (mm) | F (mm) | G1 Thread | H (mm) | K Diameter (mm) | L (mm) | M (mm) | N (mm) | O (mm) |
| 3 Series | 58mm | 17mm | 28mm | 14mm | 16mm | 35mm | 16mm | M8 | 5 to 45mm | 3mm | 9.5mm | 7.8mm | 11mm | 6mm |
