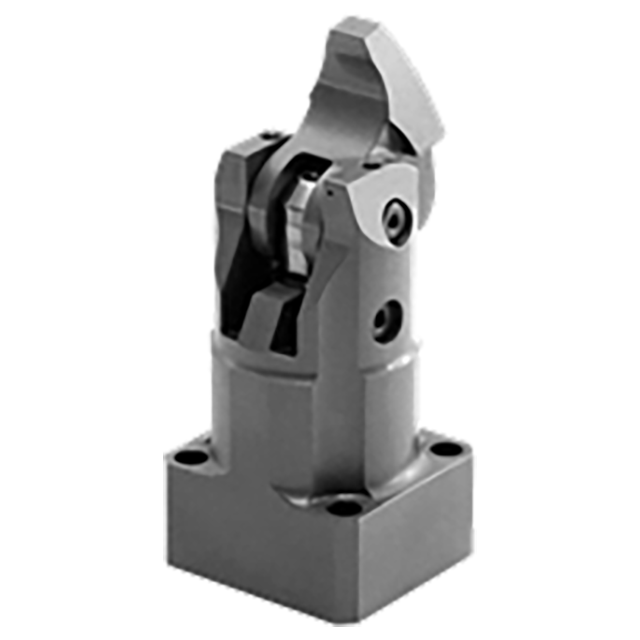

Roemheld CLR-1801-230 | 4.5mm Stroke Compact Clamp

Roemheld Compact Clamps-Flange Base

Compact Clamps have a sturdy lever mechanism that pivots into clamping position. These clamps are extremely compact, especially in footprint. The clamping lever pivots a full 90° for clear loading even when using custom long clamping levers. Ideal for clamping in narrow recesses. The flange-base version shown here is designed specifically for space-saving manifold mounting. Integrated pneumatic clamping monitoring allows checking for workpiece presence and clamping pressure.

Application Information

Clamping of a cast part with special clamping lever

Clamping of a cast part with special clamping lever

Clamping Action

Applying fluid pressure to the A (clamping) port advances the piston, which pivots the clamping arm into position. Switching pressure to the B (unclamping) port positively retracts the piston and the attached clamping arm.

Mounting & Fluid Supply

Clamping Arm

Optional Long Arm

Material

Parts Specification
