Roemheld CLR-1849-024-SC | 27mm Diameter x 6mm Stroke Compact Swing Clamp

Roemheld Compact Swing Clamps-Top Flange-Single Acting

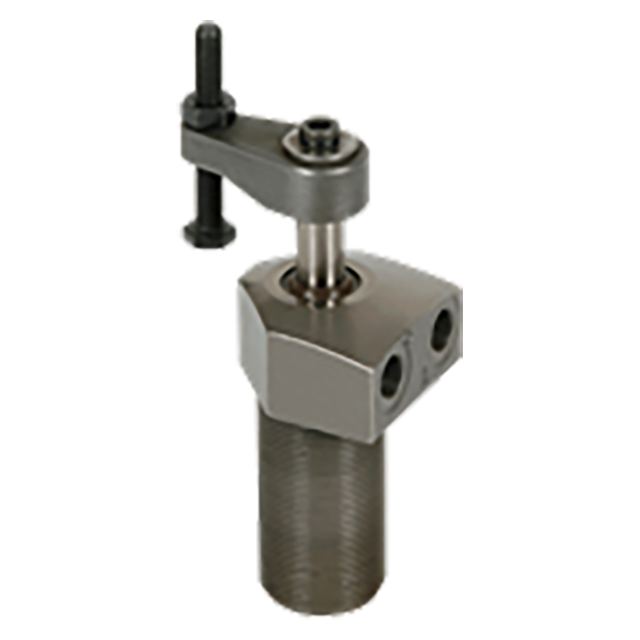

Swing Clamps utilize a sturdy helical-cam mechanism to swing the clamping arm clear for unrestricted loading. The Compact Swing Clamps are extremely small, economical clamps suitable for many applications. Clamping arm can be mounted to start its 90° swing from any position within 360°. The top-flange version allows low-profile mounting, using either standard fittings or manifold mounting.

Clamping Action

Swing Clamps are pull-type cylinders where part of the total stroke is used to swing the piston, and the remaining stroke is available as the clamping range. Applying fluid pressure swings arm 90° over workpiece then clamps down. The single-acting version has a fast, totally dependable spring return that lifts the arm, then swings it back 90° for loading/unloading.

Design Considerations

Due to their small size, these Swing Clamps do not have overload protection; therefore the swing motion must not be restricted in any way. Be sure to adjust the contact bolt so that the clamp completes its full swing stroke and starts its clamping stroke before contacting the workpiece. To be safe, use low operating pressure during initial setup.

For extended clamp life a simple flow-control valve may be required if the fixture is powered by a high-flow-rate power source and only contains a few clamps. Clamping time should be at least one second.

Mounting & Fluid Supply

Version 1 (Standard Fittings): 1/8" BSPP port (two for double-acting clamps). Do not use NPT fittings. Two mounting options:a) Screw threaded body into a tapped hole. Body must be pre-stressed by using the optional lock ring, or by tightening against the top flange (use a spacer for exact fitting orientation);b) Mount through a bored hole in the fixture plate, securing with one or two lock rings.

Version 2 (Manifold Mounting): Optional manifold-mounted version has O-ring ports underneath instead of standard ports. Do not use NPT fittings. Fasten clamp with four #10 or M5 socket-head cap screws.

Material

Parts Specification
