Roemheld CLR-3468-383 | 3 Size x 78mm Length Mounting Block

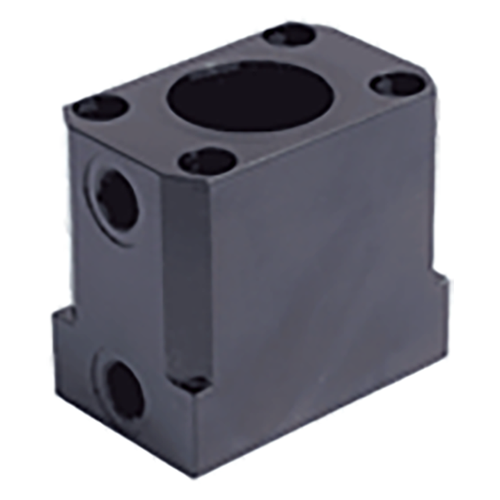

Mounting Block for Roemheld Compact Clamps-Top Flange-Cartridge Type

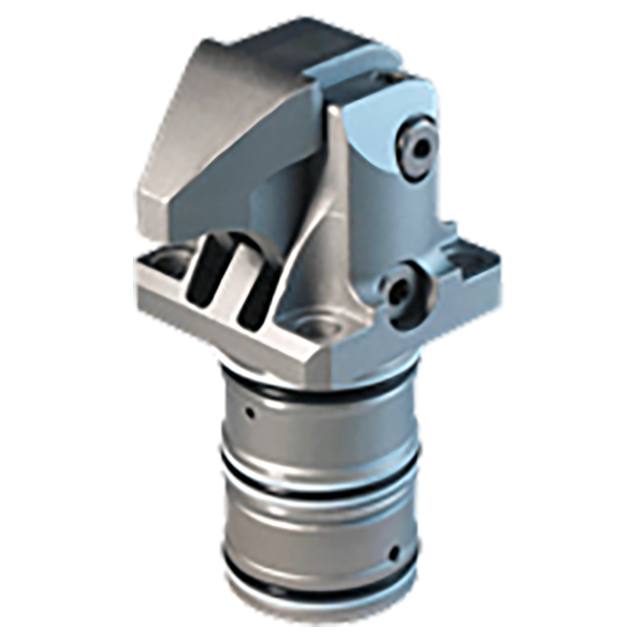

3600 psi max. Double acting. Compact Clamps have a sturdy lever mechanism that pivots into clamping position. These clamps are extremely compact both in footprint and overall height. The clamping lever pivots a full 90° for clear loading even when using custom long clamping levers. Ideal for clamping in narrow recesses. The top-flange cartridge-type version shown here is designed specifically for space-saving manifold mounting. Integrated pneumatic clamping monitoring allows checking for workpiece presence and clamping pressure.

Application Information

Clamping Action

Applying fluid pressure to the A (clamping) port advances the piston, which pivots the clamping arm into position. Switching pressure to the B (unclamping) port positively retracts the piston and the attached clamping arm.

Mounting & Fluid Supply

Manifold mounting in a bored throughhole, or with accessory mounting block using standard fittings.

Manifold mounting in a closed pockethole

Fasten clamp with four socket-head cap screws. Threaded-cartridge clamps have O-ring seals on their outside diameter, so they require a precision mounting hole. Do not use NPT fittings.

Clamping Arm

Choice of standard short clamping arm (Left) or long blank clamping arm for customization (Right).

Material

Parts Specification
