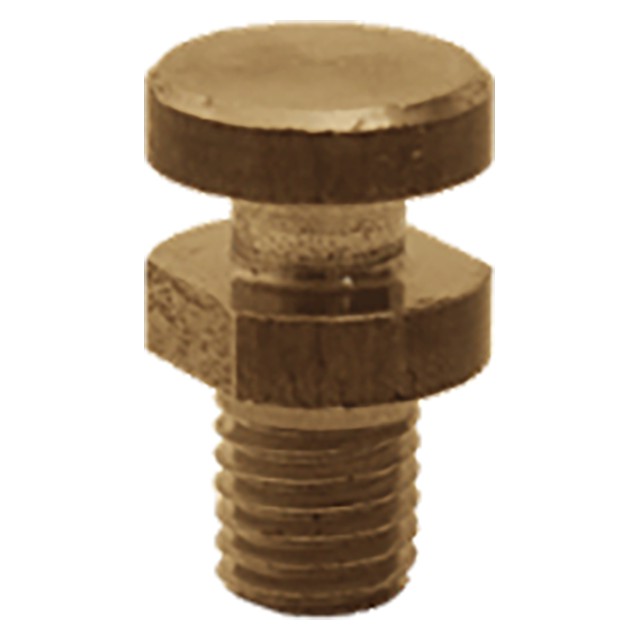

Roemheld Contact Bolts with Groove and Coupling Pin
These Contact Bolts have a radial groove for a coupling pin. This allows flexible attachment of tooling, and allows pulling as well as pushing. For use primarily on Block Cylinders. Furnished with coupling pin.
Material
| Material | Heat Treat | Finish |
| 1144 Steel or Equivalent | Heat Treated Rc 50-60 | Black Oxide |
Parts Specification
| A | B (mm) | C (mm) | D Diameter (mm) | E Diameter (mm) | F (mm) | G (mm) | H (mm) | R (mm) | S (mm) | T (mm) |
| M12 | 14.5mm | 32mm | 20mm | 10mm | 12mm | 6.5mm | 5.5mm | 320mm | 17mm | 1mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Roemheld
Thread:
M12
