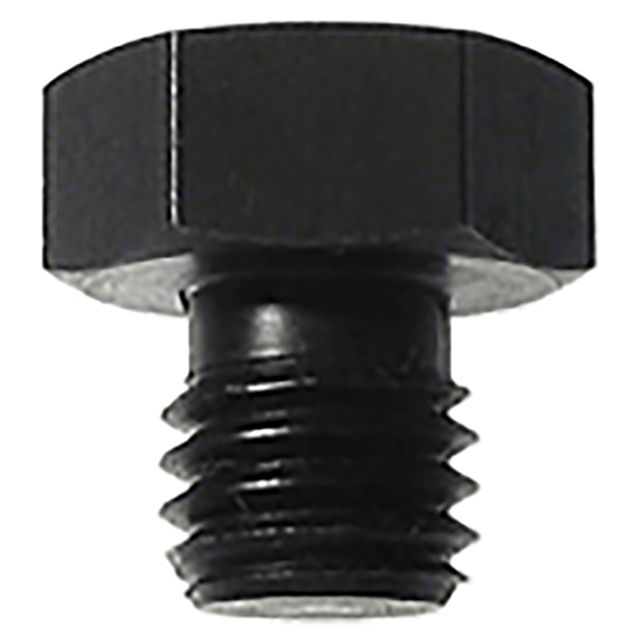

Roemheld Contact Bolts Radius
Contact Bolts are for general-purpose use as contact points on Threaded-Body Push Clamps, Block Cylinders, Threaded Cylinders, and other workholding clamps. These hardened steel bolts protect the cylinder rod and provide a contact point to hold the workpiece securely. The radius-head version provides firm contact even if the workpiece's surface is somewhat uneven.
Material
| Material | Heat Treat | Finish |
| 1144 Steel or Equivalent | Heat Treated Rc 50-60 | Black Oxide |
Parts Specification
| A (Inch) | B (Inch) | C (Inch) | F (Inch) | R (Inch) | E (Inch) | Hex (Inch) |
| 5/8-11" | 0.781" | 1.187" | 0.599" | 2.37" | 0.182" | 15/16" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Roemheld
