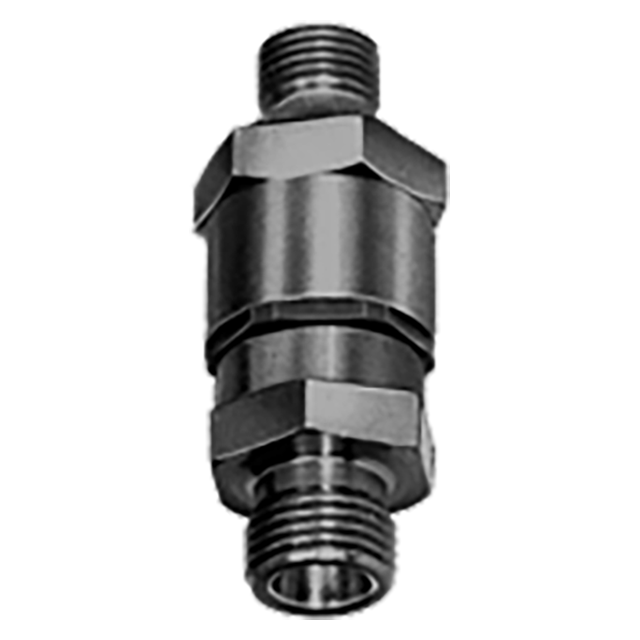

Roemheld Single Passage
7250 psi maxIdeal for supplying fluid to rotating or swiveling fixtures. Rotary Couplings are the best option for feeding fluid to rotating pallet changers, due to the continuous fluid connection. Ideal for rotary index tables. Also useful to take stress out of hose connections that regularly swivel through a small arc.
Mounting
Mount at rotational center to prevent side loading. Install into standard 1/4 BSPP port.
Parts Specification
| Minimum Operating Pressure (PSI) | Allowable Continuous Speed (rpm) | Seating Torque (ft-lbs) | Approximate Starting Torque (ft-lbs) |
| 150 PSI | 10 RPM | 44 ft-lbs. | 1.0 ft-lbs. |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Roemheld
